Eventuri Toyota MK5 A90 Supra Black Carbon Intake System

Description

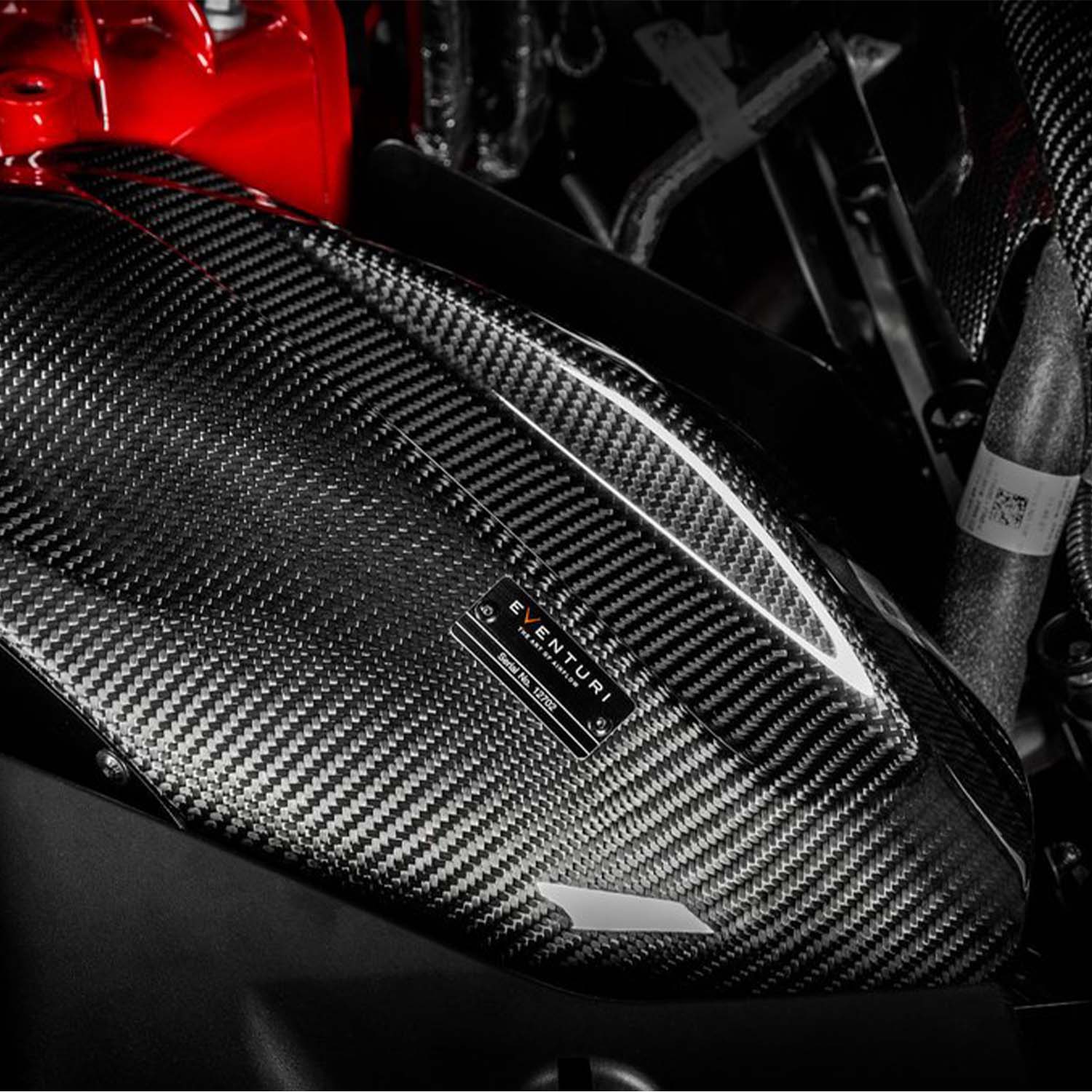

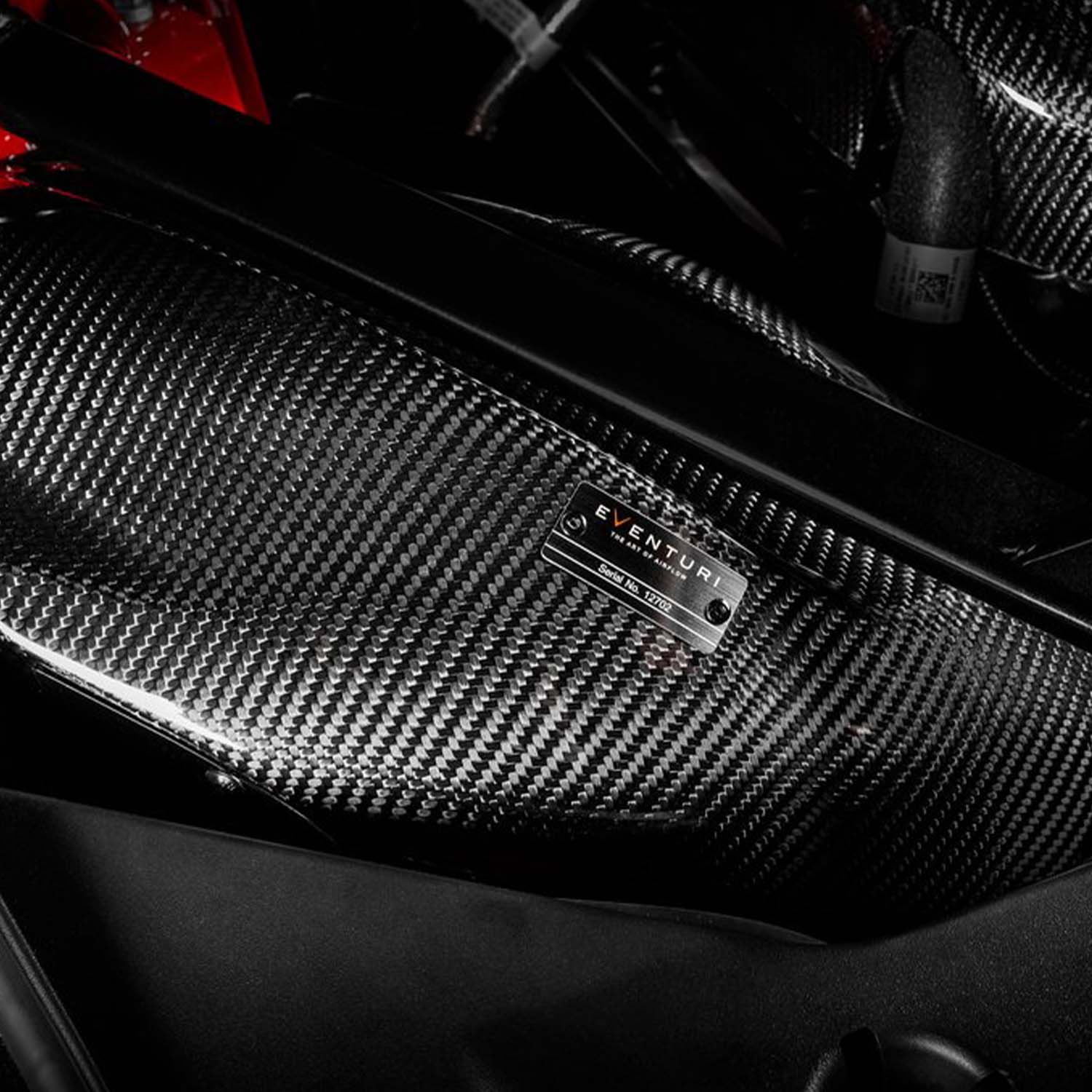

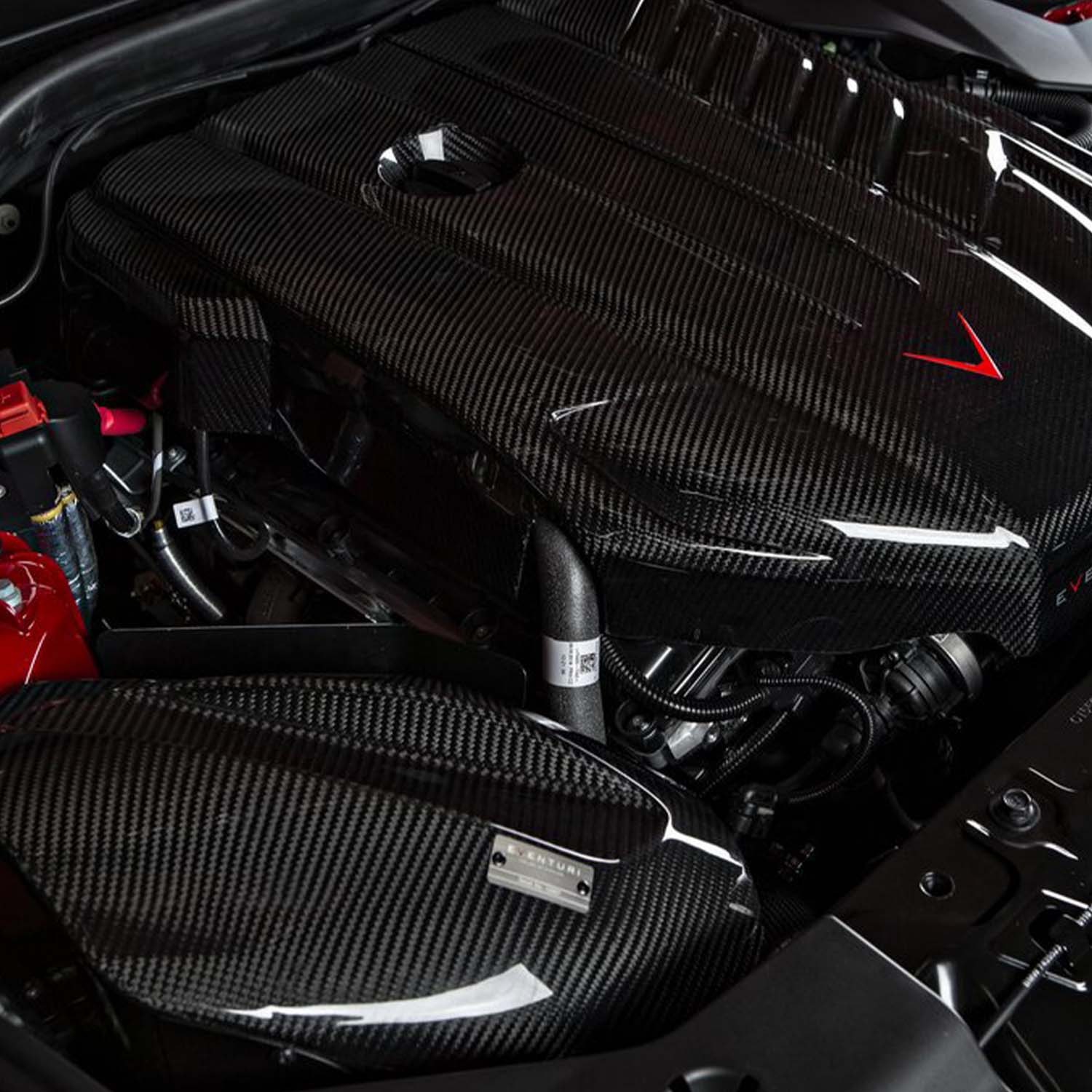

The MK5 Supra Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the Supra, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This, however, results in a restriction with only one stock air feed to draw air in from.

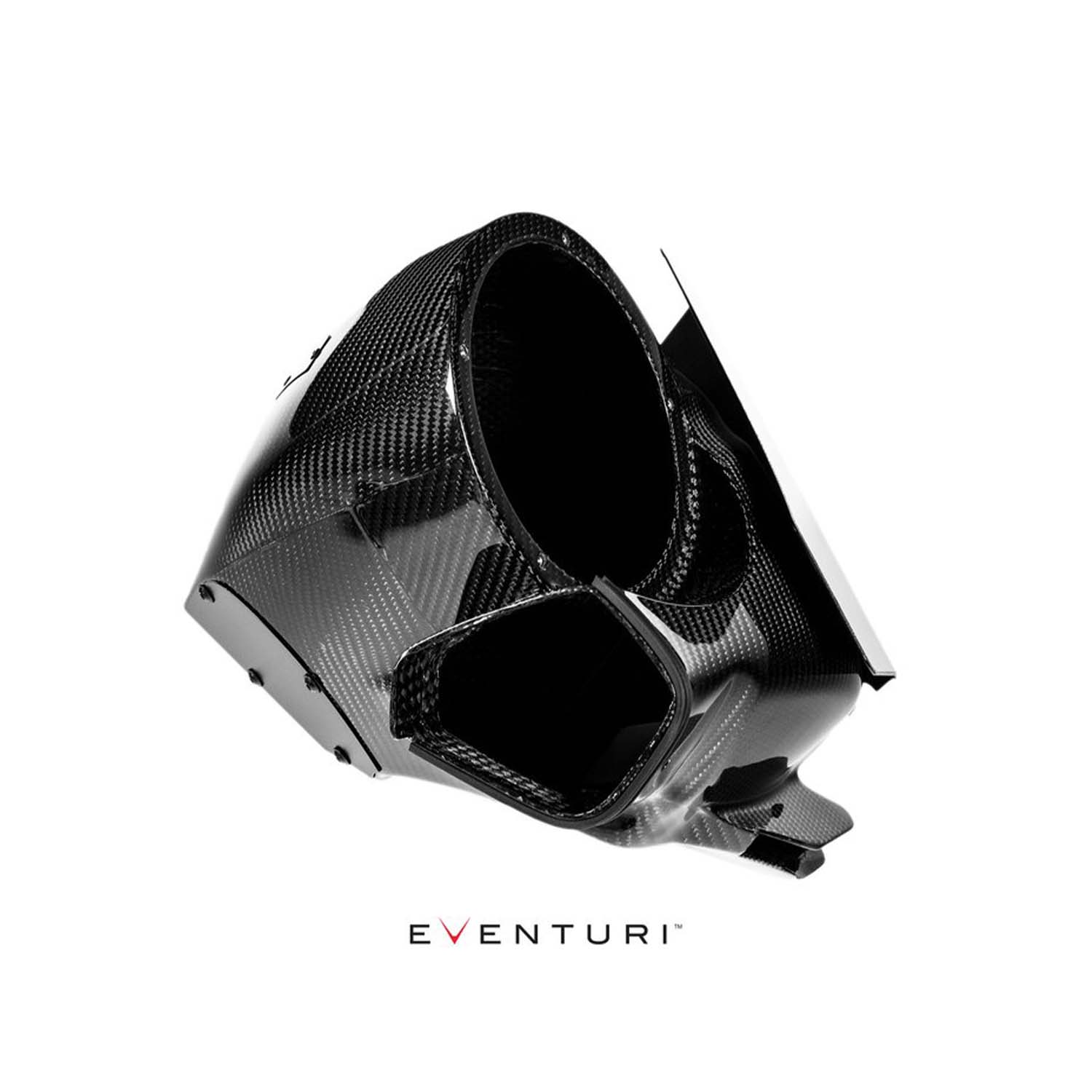

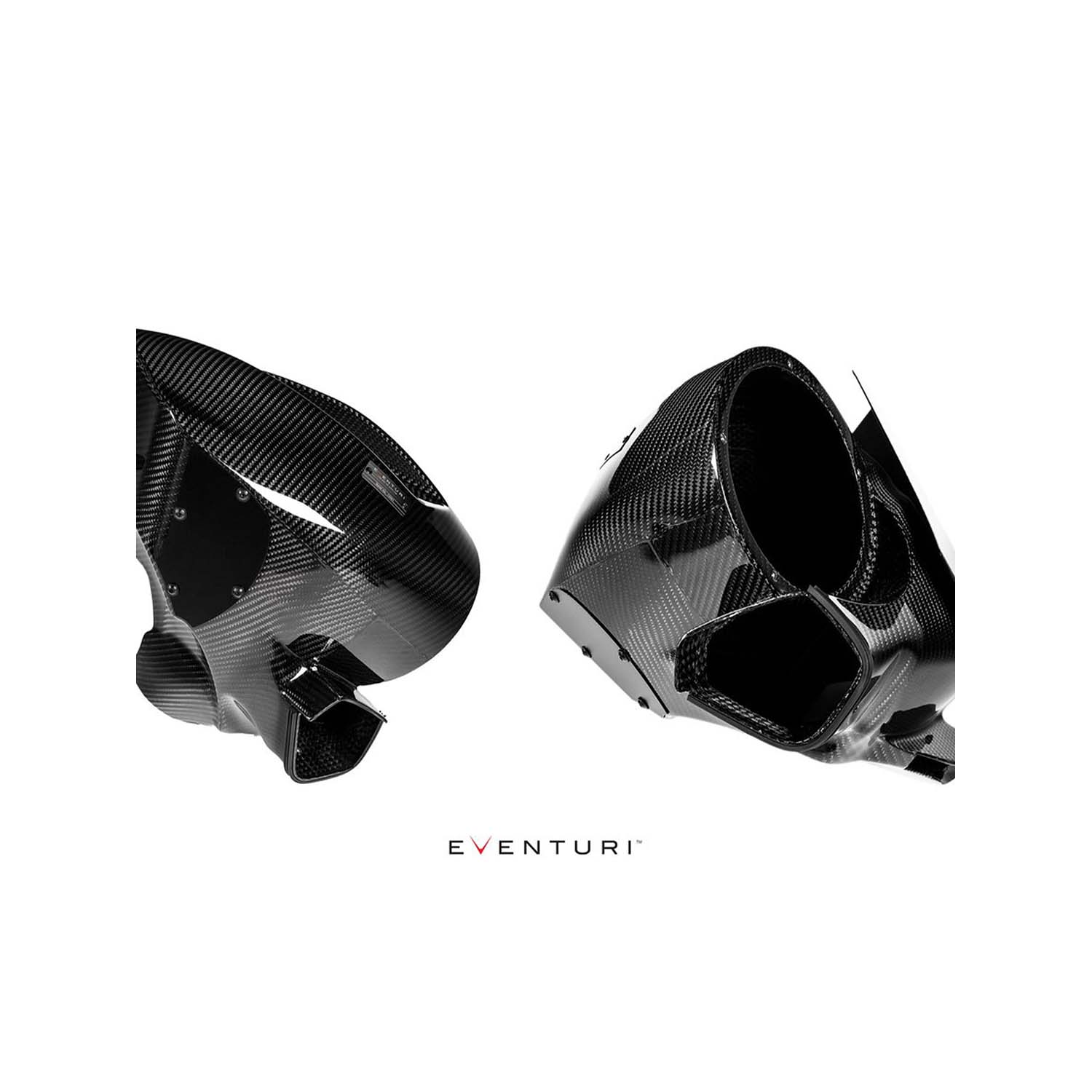

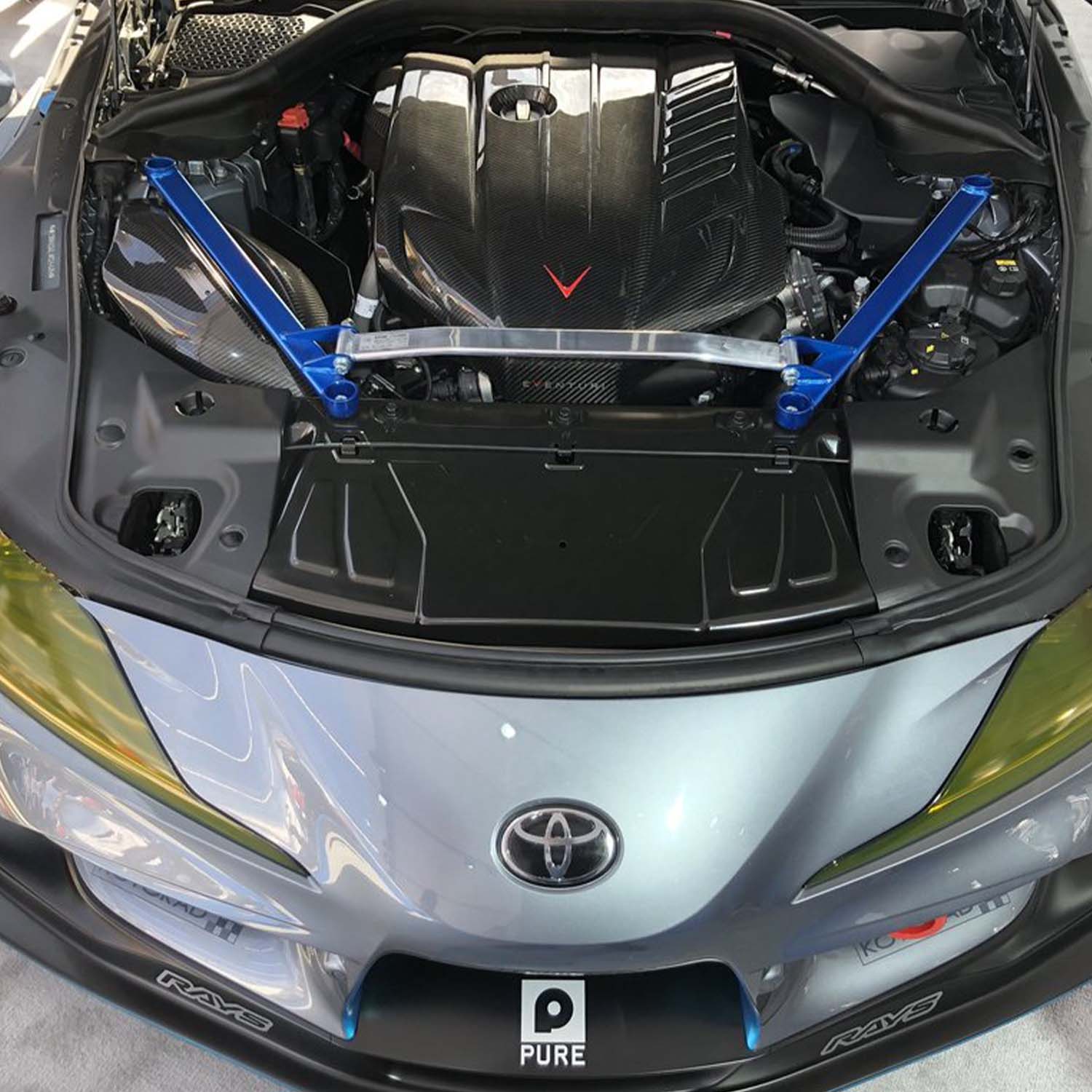

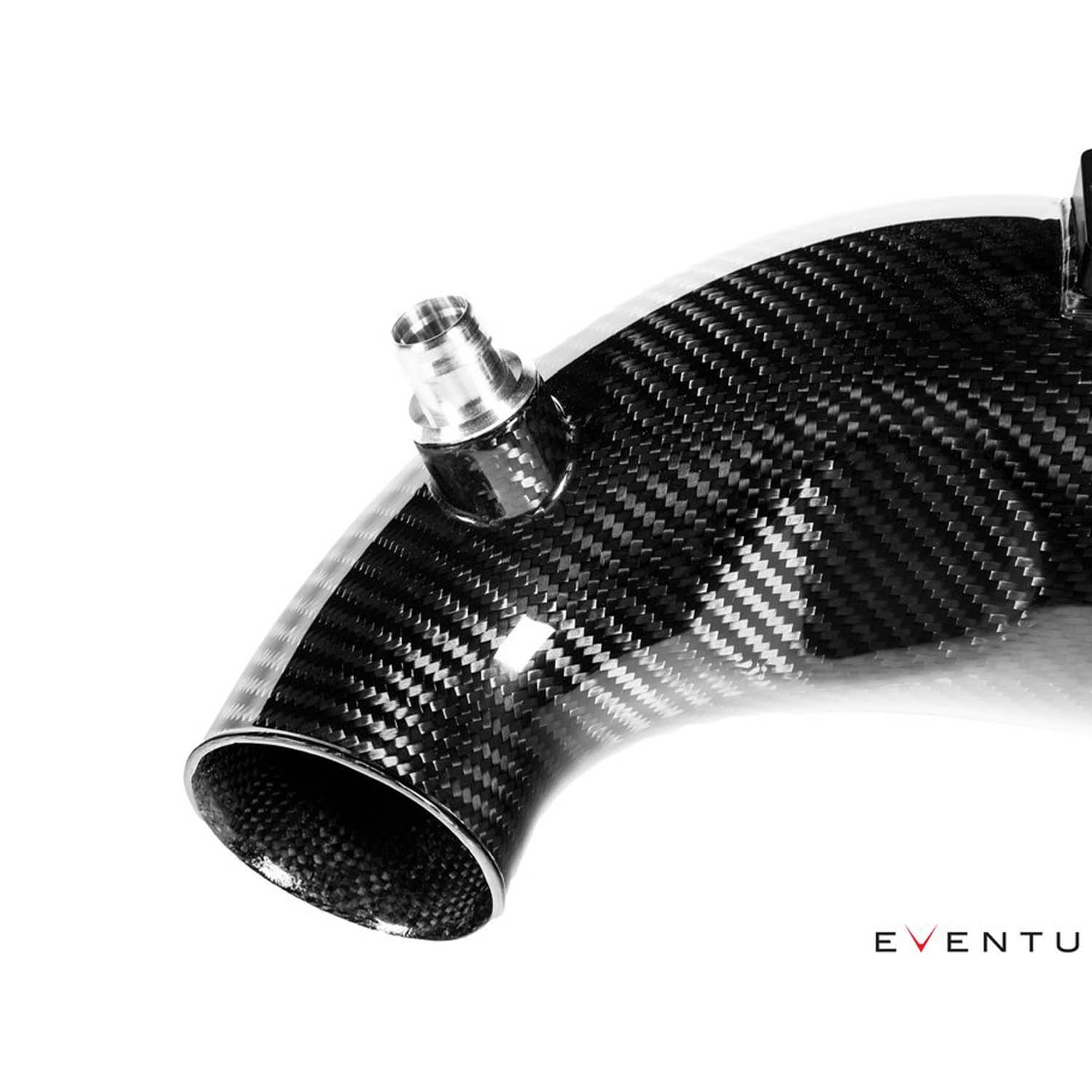

During development, we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore, our sealed airbox also has a heat shield with gold reflective to minimise the radiative heat transfer from the exhaust manifold. In order to maximise volume, we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally, we use a custom made high-flow dry filter that is ISO tested for filtration performance and has a larger filtration area than the stock filter.
Specification

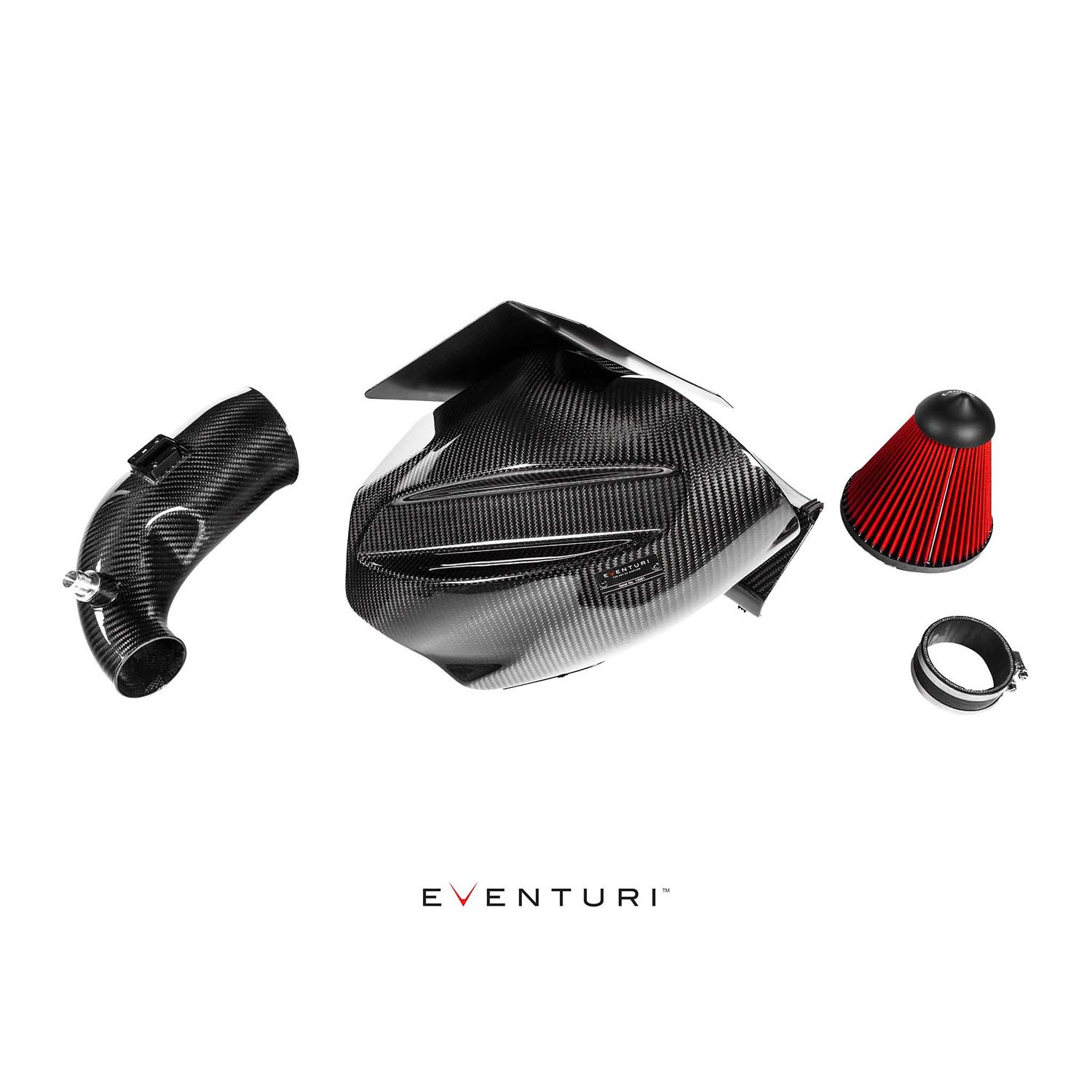

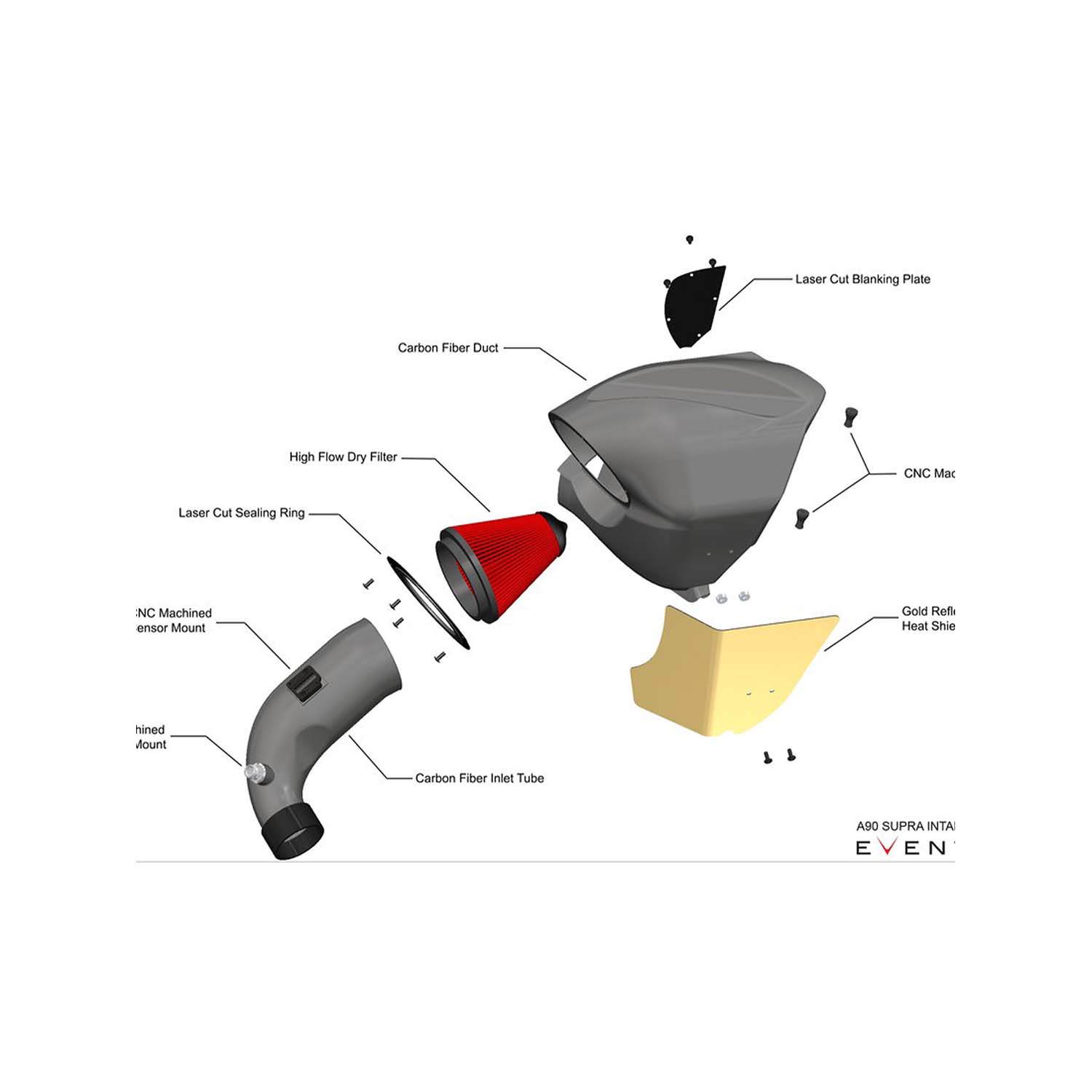

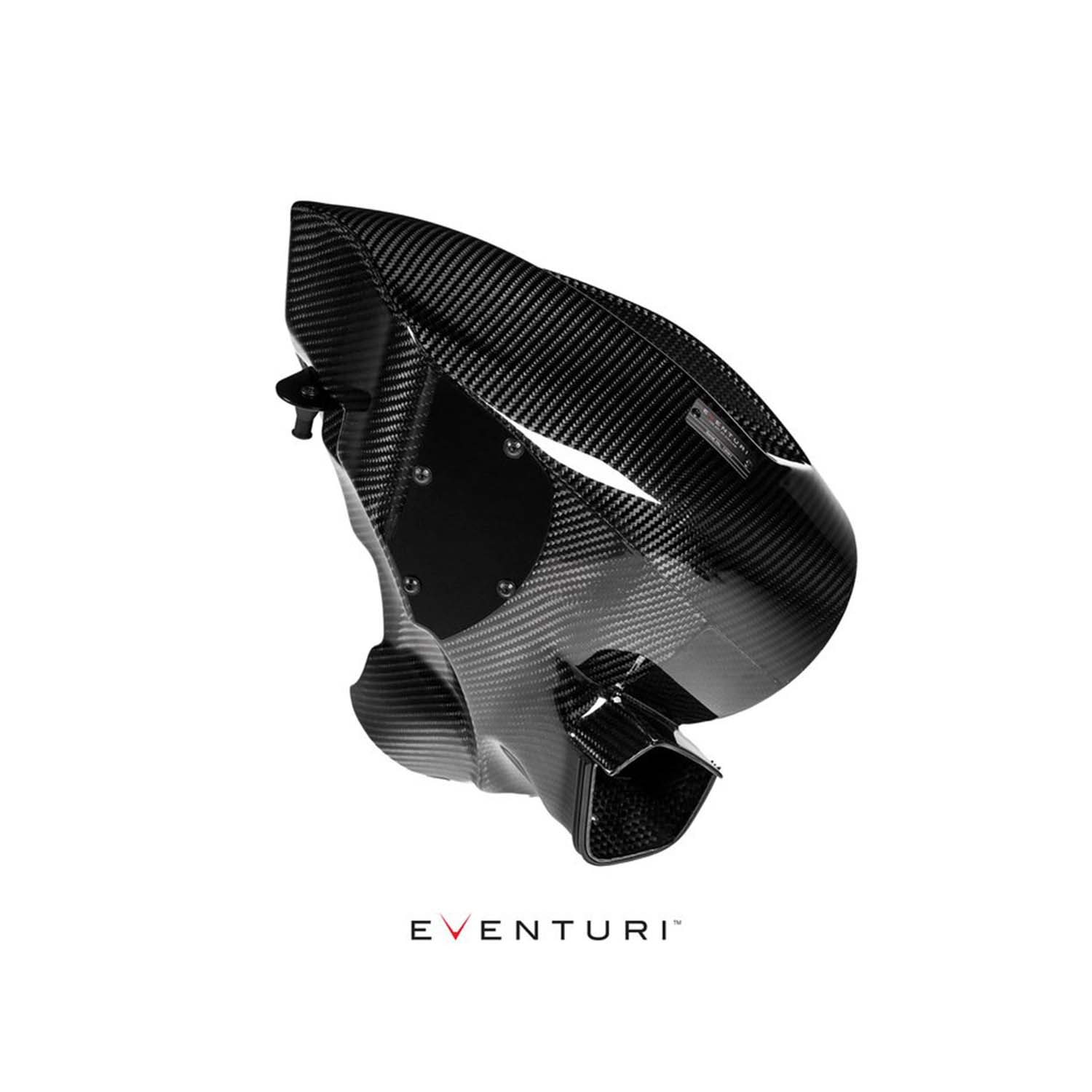

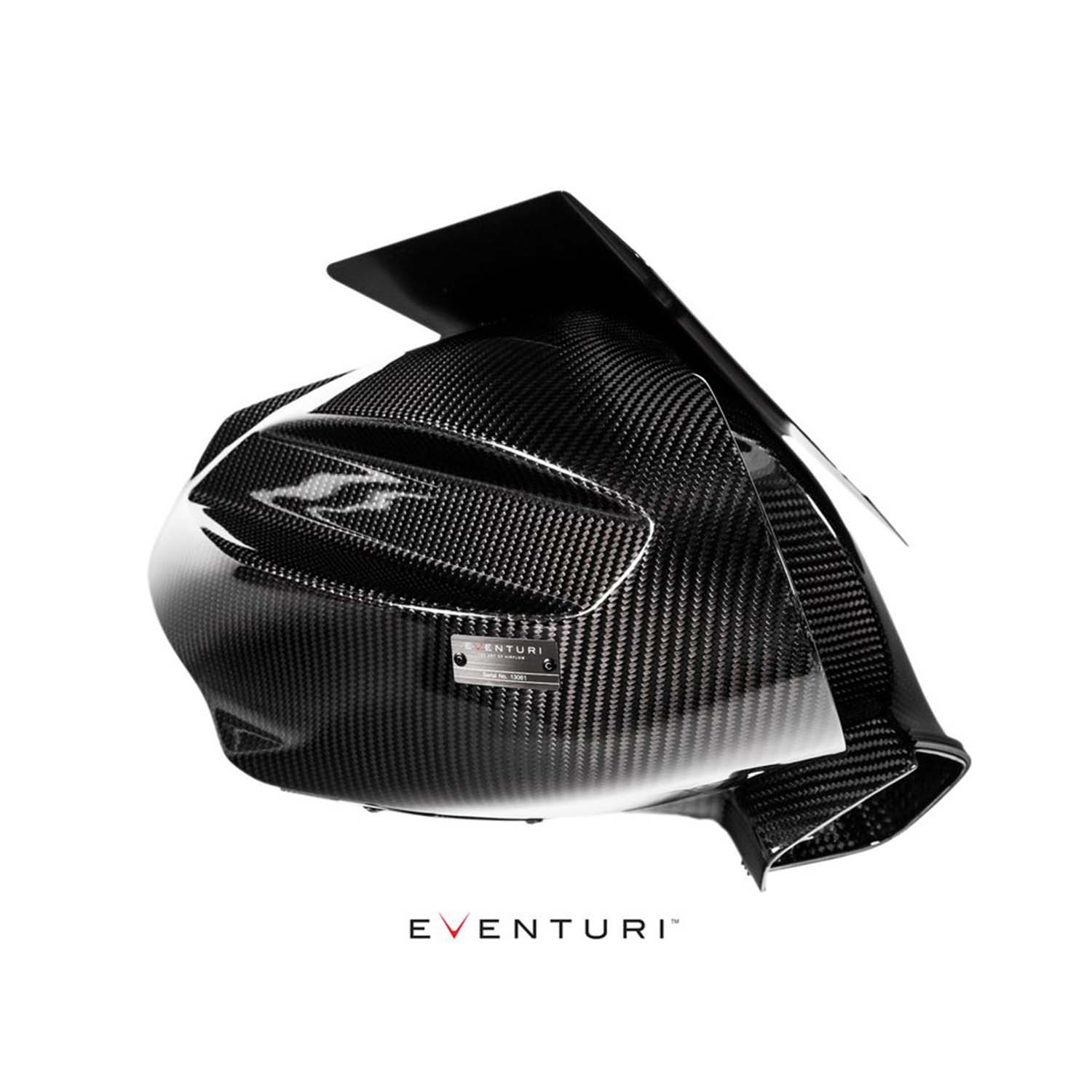

Carbon Fiber Airbox with Dual Feeds
Bespoke High Flow Dry Cone Filter

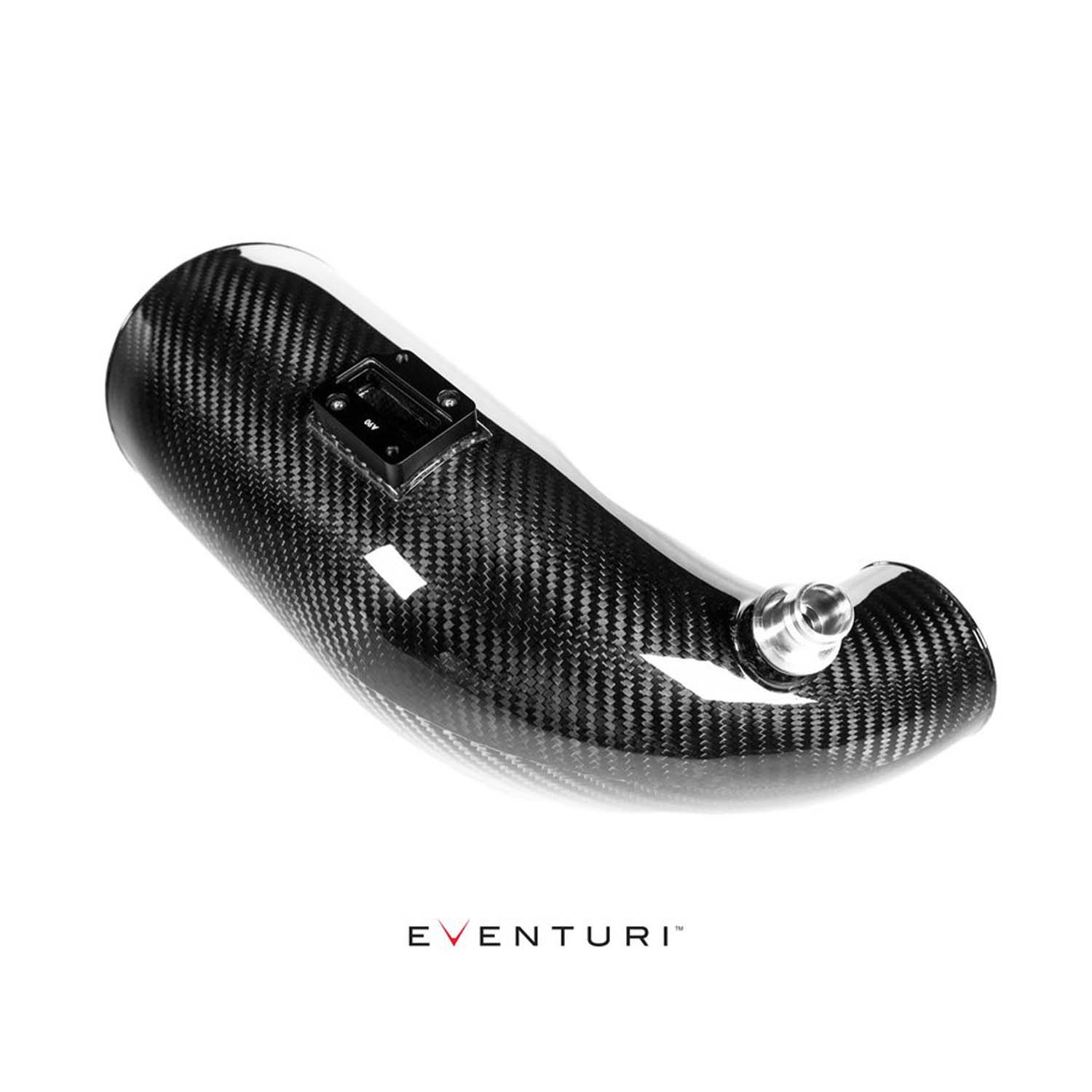

Carbon Fiber Inlet Tube with 111mm opening ID
CNC Machined Temperature Sensor Mount
CNC Machined Breather adapter

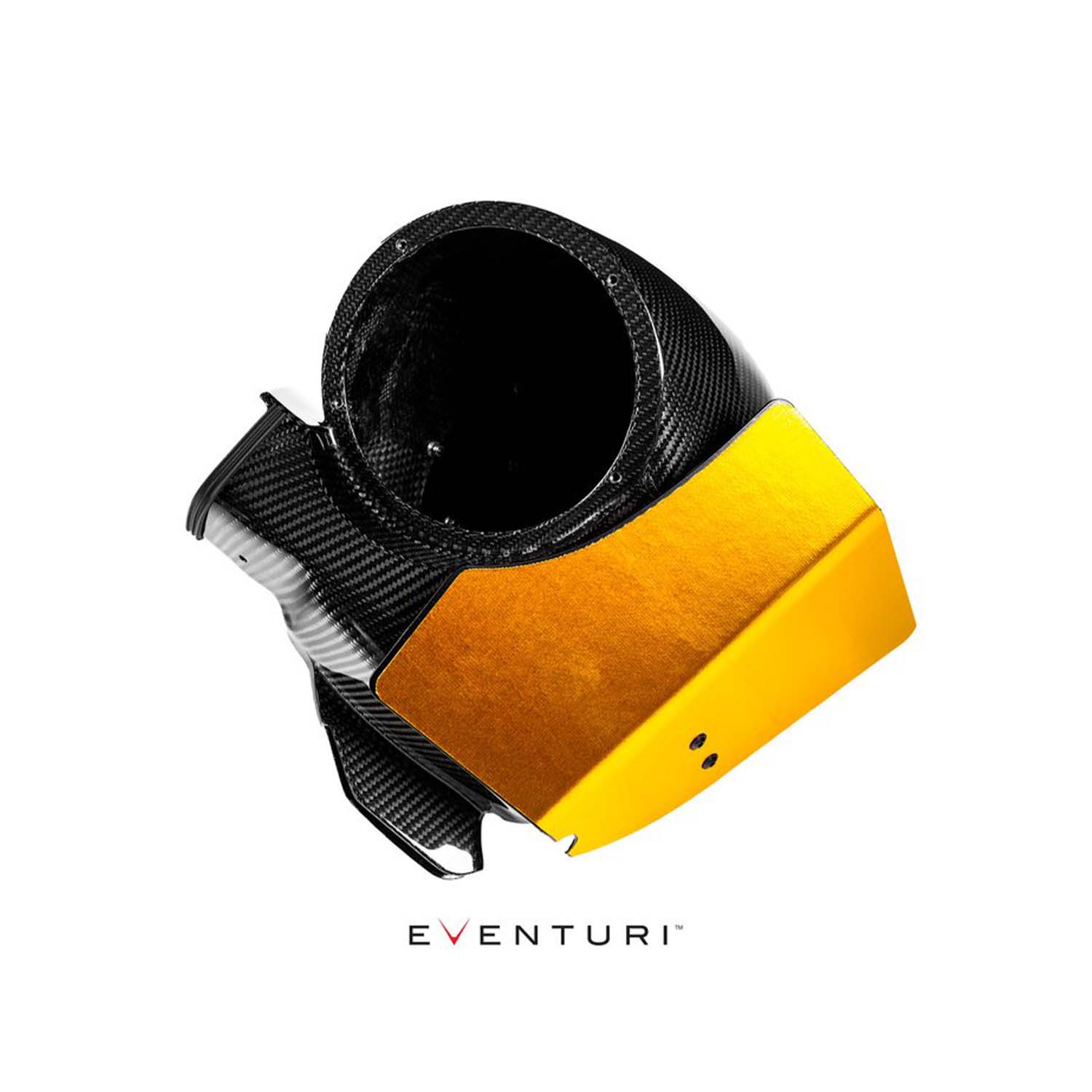

Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel Brackets
Silicon Coupler with OEM Specification Clamps

Compatible models

Toyota Supra MK5 A90
