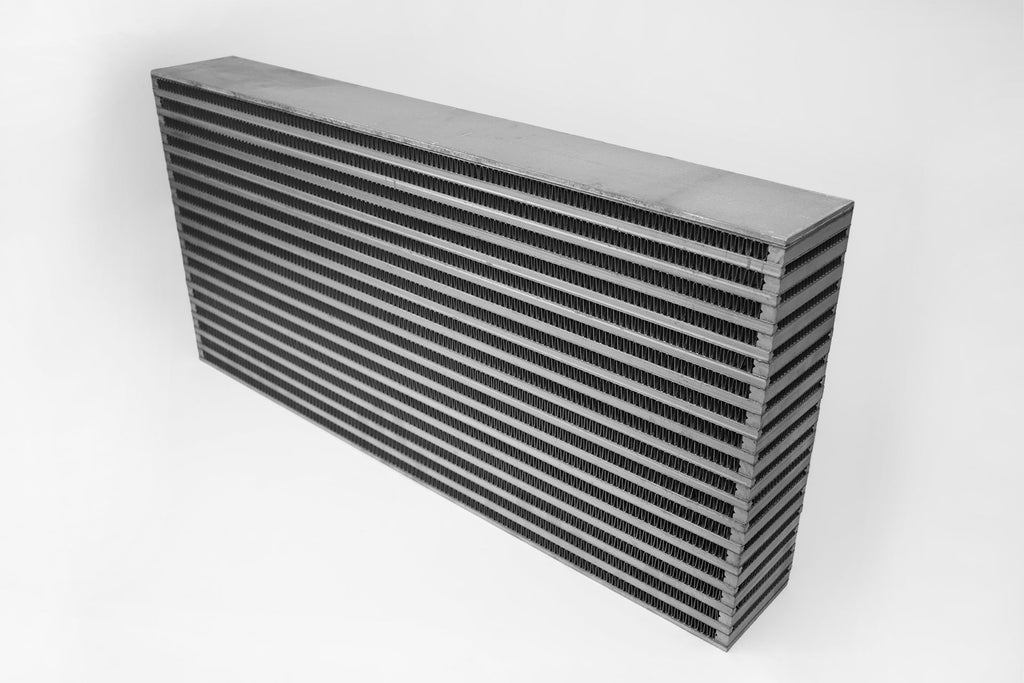

CSF High-Performance Bar & Plate Intercooler Core 25x12x4.5
Description
The CSF High-Performance Bar & Plate Intercooler Core, measuring 25" x 12" x 4.5", represents a pinnacle of engineering excellence tailored for demanding automotive applications. Designed to support up to 1200 WHP, this horizontal flow core is an ideal component for custom high-performance intercooler assemblies, ensuring optimal cooling efficiency under extreme boost conditions. CSF’s commitment to quality is evident in every aspect of this product, from its meticulous manufacturing process to rigorous testing protocols.

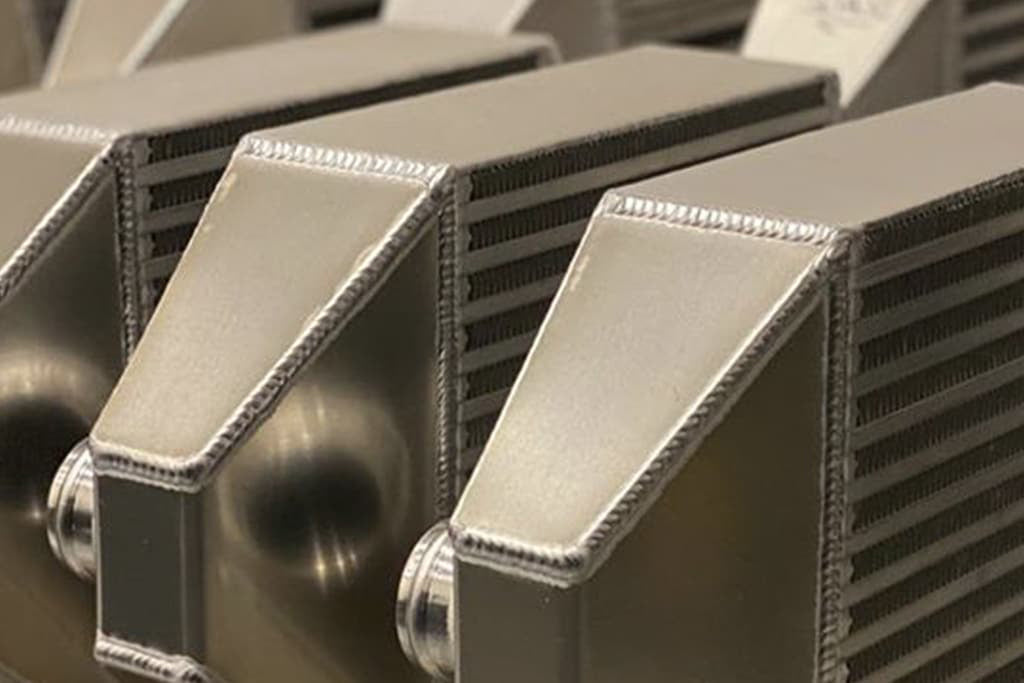

Each intercooler core is hand-built within a controlled clean room environment at the CSF factory, where technicians employ specialized jigs and fixtures to guarantee a perfectly straight core. The use of gloves during assembly ensures that surfaces remain pristine, facilitating superior brazing quality and providing a flawless base for subsequent welding operations. This careful attention to detail translates into enhanced durability and reliability, critical for high-performance applications.

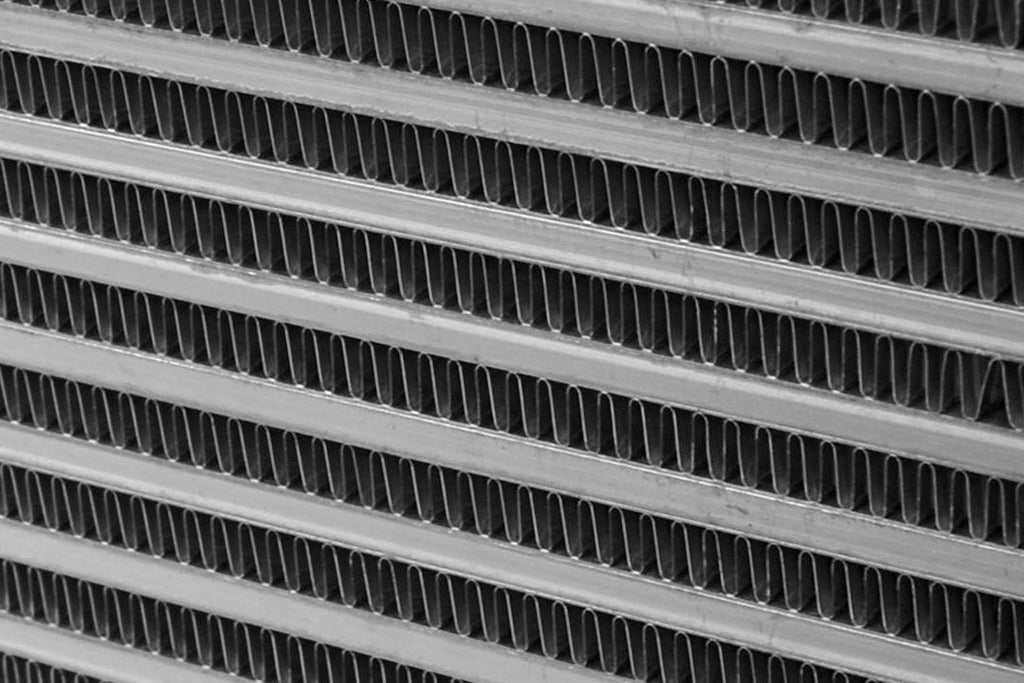

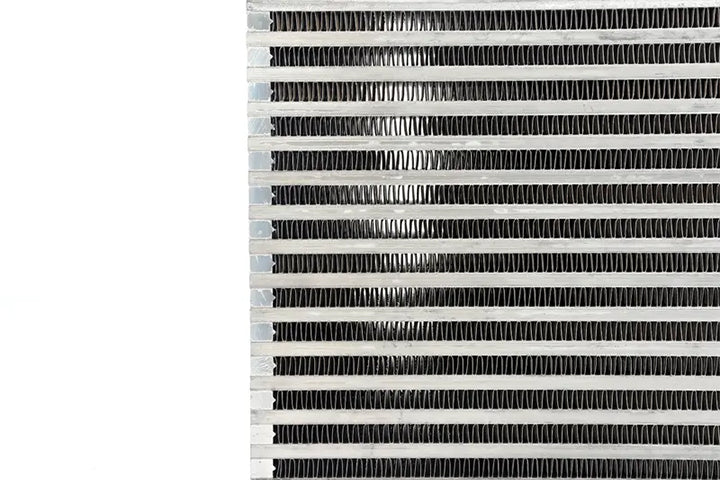

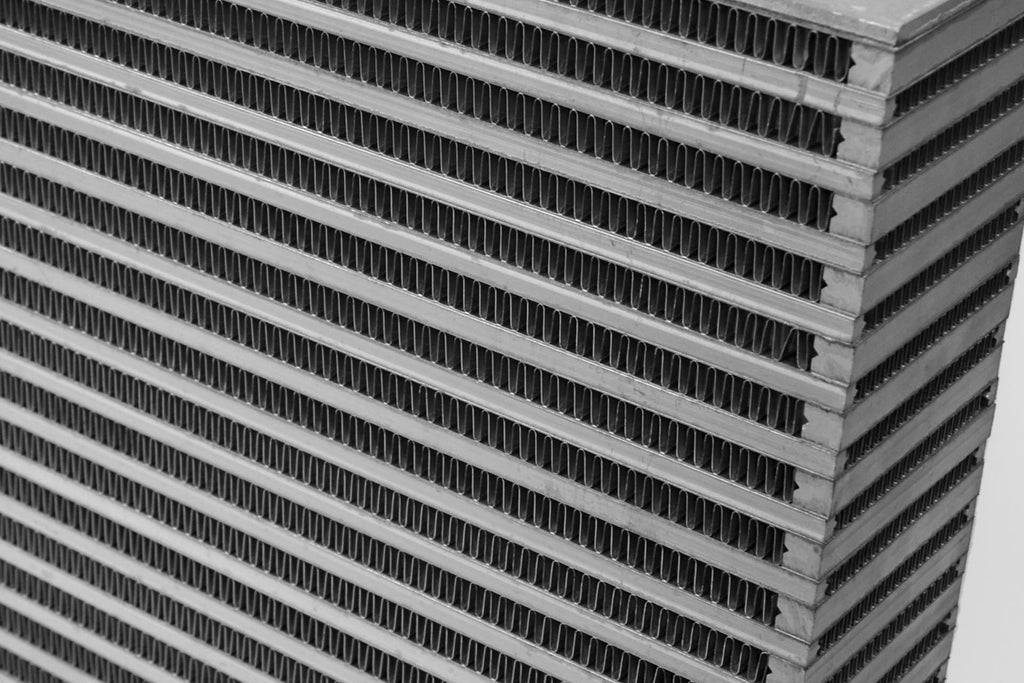

The core features a sophisticated multi-louvered, high-precision staggered fin design on both the ambient and pressure sides. This advanced fin architecture maximizes heat transfer efficiency, enabling the intercooler to maintain lower intake air temperatures and improve overall engine performance. The bar and plate construction further enhances structural integrity, making it well-suited for the rigorous demands of motorsport and tuning environments.
Reliability is paramount, and to that end, each unit undergoes individual pressure testing at 120 psi, ensuring it withstands the stresses of extreme boost pressures without compromise. Additionally, the cores are batch brazed using CSF’s state-of-the-art digital vacuum brazing ovens—12 ovens in total—providing consistent, high-quality joins that resist corrosion and mechanical fatigue over time.
Features
- Heavy-Duty Bar & Plate Intercooler Cores engineered for high-performance applications
- Pressure Tested at 120psi to guarantee maximum reliability under extreme boost conditions
- Hand-Built Using Precision Jigs & Fixtures to ensure a perfectly straight core for seamless welding
- Manufactured in a Clean Room Environment with Glove Usage to maintain surface integrity for optimal brazing
- Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for superior heat transfer
- Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens for consistent quality and durability
- Subjected to Strict Quality Control and Individual Pressure Testing for assured performance
- Individually Boxed and Protected to ensure secure transport through single piece mail services
- Dimensions: 25" x 12" x 4.5" (635mm x 300mm x 115mm)
- Rated for 1200 Horsepower (WHP)
- Cross-flow configuration for efficient air distribution and cooling
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty on its High-Performance Cooling Systems, including this intercooler core, to the original purchaser under normal use and service conditions. This warranty underscores CSF’s confidence in the product’s durability and performance. For detailed warranty information, please visit our Warranty Page.
SKU# 8046 Warranty Term: 2 years
