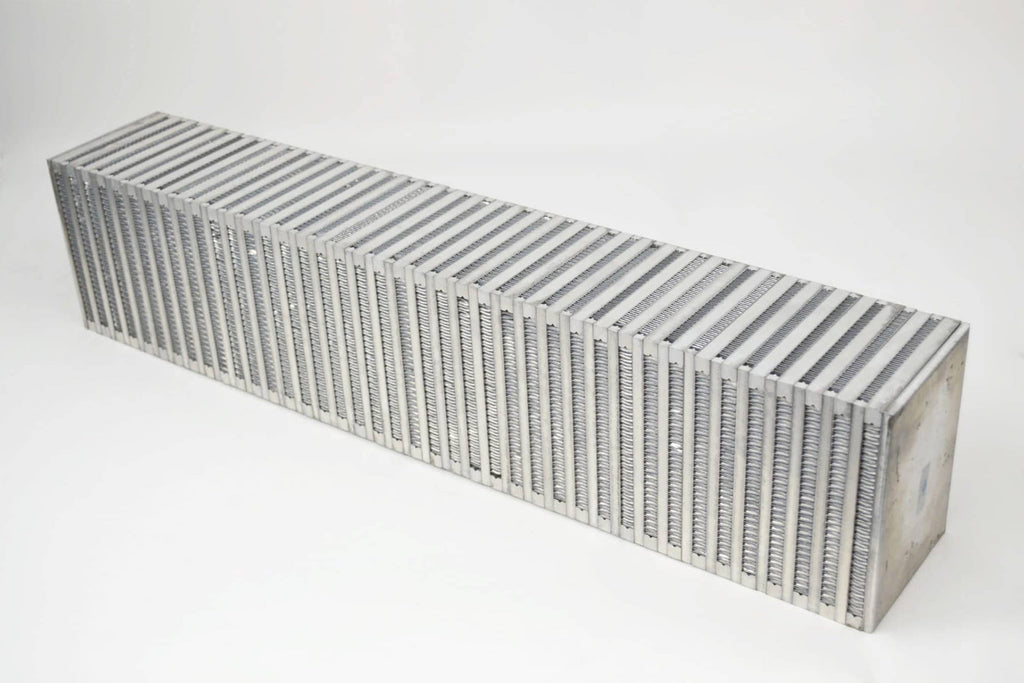

CSF High-Performance Bar & Plate Intercooler Core 27x6x3 - Vertical Flow
Description
The CSF High-Performance Bar & Plate Intercooler Core 27x6x3 - Vertical Flow represents a pinnacle of engineering excellence within the automotive cooling industry. Crafted by CSF, a brand synonymous with quality and reliability, this intercooler core is designed to meet the rigorous demands of high-performance applications, making it an indispensable component for tuning professionals and enthusiasts alike.

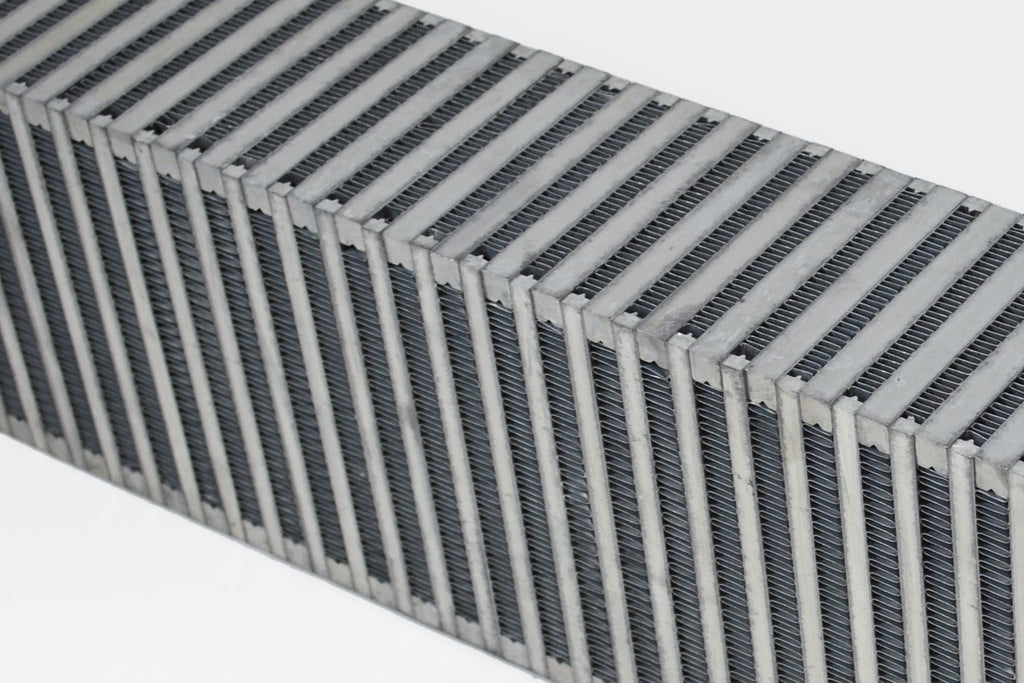

Measuring 27" x 6" x 3" (685mm x 150mm x 75mm), this vertical flow core is rated to handle up to 800 wheel horsepower (WHP), ensuring optimal cooling efficiency even under extreme boost conditions. The core’s construction employs a heavy-duty bar and plate design, which is widely recognized for its superior strength, durability, and thermal conductivity. This robust architecture facilitates efficient heat dissipation, thereby maintaining lower intake air temperatures and improving engine performance and reliability.
Each intercooler core undergoes meticulous hand-building processes within CSF’s state-of-the-art manufacturing facility. Utilizing precision jigs and fixtures guarantees a perfectly straight core, which significantly simplifies welding and installation. The assembly takes place in a clean room environment, where operators use gloves to maintain an immaculate surface, ensuring flawless brazing and a contamination-free finish. This attention to detail not only enhances the product’s longevity but also supports consistent performance in demanding conditions.

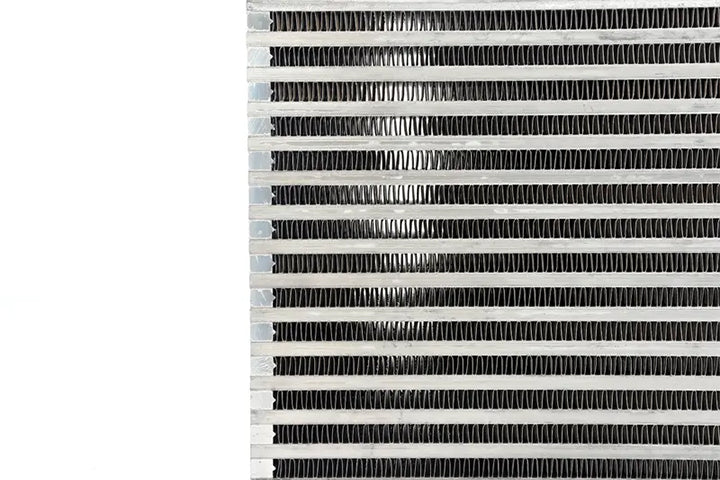

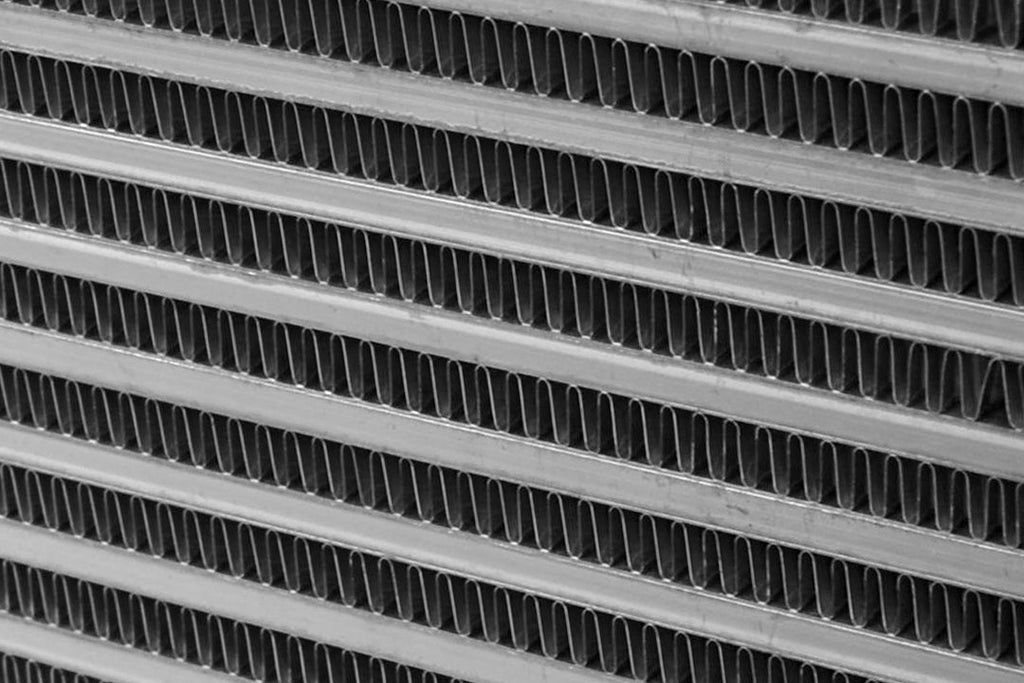

The core features a multi-louvered high precision staggered fin design on both the ambient and pressure sides. This advanced fin architecture maximizes heat transfer efficiency by increasing the surface area exposed to airflow while maintaining optimal pressure drop characteristics. Such a design is critical for maintaining peak intercooling performance, especially in high-boost scenarios where thermal management is paramount.
CSF employs a batch brazing process conducted in their digital vacuum brazing ovens—12 ovens in total—ensuring uniform and high-quality joints throughout the core. This sophisticated brazing technique contributes to the structural integrity and leak-free operation of the intercooler, which is further validated by individual pressure testing at 120 psi. This rigorous quality control protocol guarantees that each core can withstand the stresses of extreme boost pressures without compromising reliability.
Key Features
- Heavy-Duty Bar & Plate Construction for Enhanced Durability
- Pressure Tested at 120 psi to Ensure Maximum Reliability in High-Boost Applications
- Hand-Built Using Precision Jigs & Fixtures for Accurate Alignment and Straightness
- Manufactured in a Controlled Clean Room Environment with Gloved Handling for Superior Brazing Quality
- Multi-Louvered, High Precision Staggered Fin Design Optimized for Heat Transfer Efficiency
- Batch Brazed in Advanced Digital Vacuum Brazing Ovens for Consistent Quality
- Individual Pressure Testing and Strict Quality Assurance Protocols
- Individually Boxed and Protected for Secure Shipping via Single Piece Mail Services
- Dimensions: 27"x6"x3" (685mm x 150mm x 75mm)
- Rated for 800 WHP
- Vertical Flow Configuration
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) provides a comprehensive warranty for their High-Performance Cooling Systems, ensuring coverage under normal use and service conditions to the original purchaser of the vehicle in which the product was initially installed. This warranty underscores CSF’s commitment to quality and customer satisfaction. For detailed warranty information, please visit our Warranty Page.
SKU# 8068 Warranty Term: 2 years
In summary, the CSF High-Performance Bar & Plate Intercooler Core 27x6x3 - Vertical Flow stands out as a premium solution for high-output engines requiring reliable and efficient intercooling. Its robust construction, precision manufacturing, and stringent quality control processes make it an ideal choice for professionals seeking to optimize engine performance while maintaining durability and dependability under demanding conditions.
