CANchecked MFD32 Gen2 for BMW E81/E82/E87/E88/1M 1 Series
Description

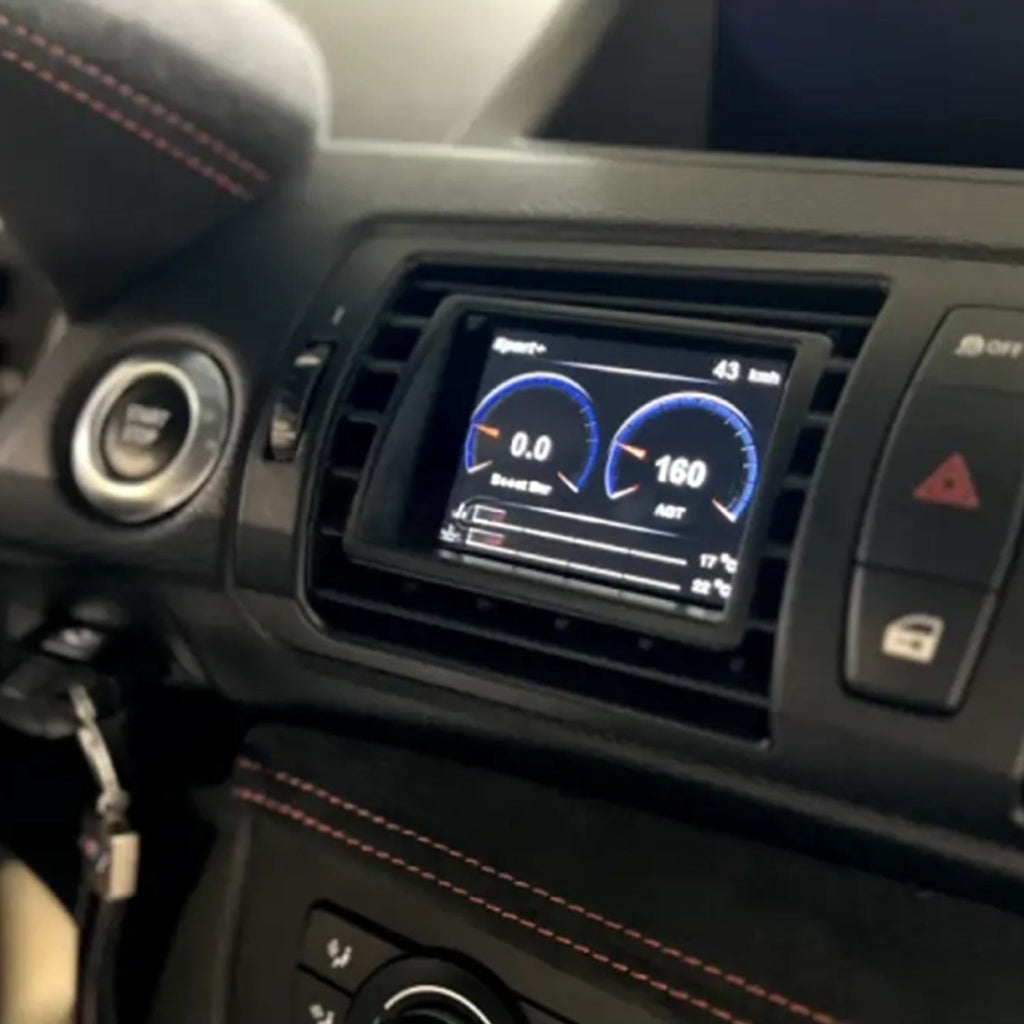

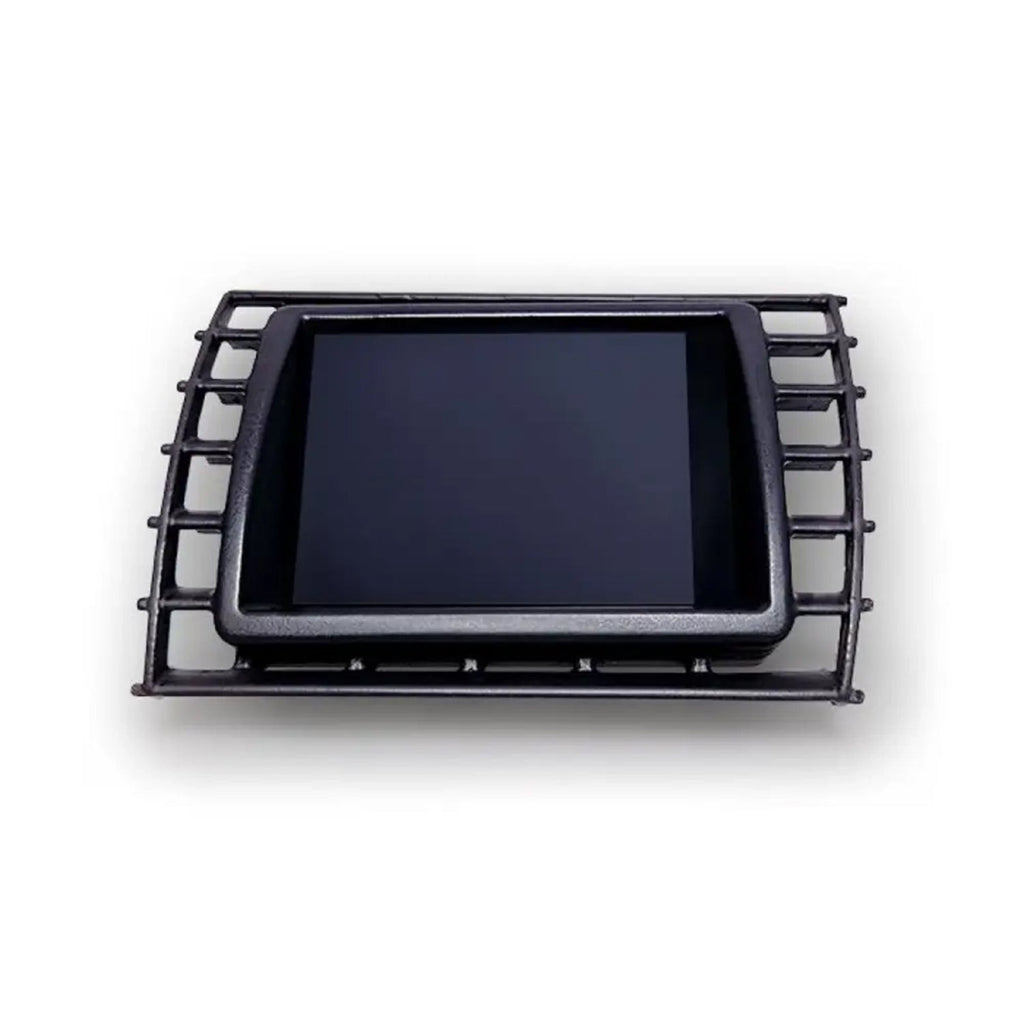

The CANchecked MFD32 Gen2 is a next-generation digital display designed to bring advanced data monitoring to the BMW E81, E82, E87, E88 and 1M 1 Series models. Available for both left-hand drive (LHD) and right-hand drive (RHD) vehicles, this compact yet powerful unit delivers real-time engine and sensor data with an OEM-like fit and finish.
At its core, the MFD32 features a sharp 3.2" TFT capacitive touchscreen housed within a high-quality milled aluminium frame, ensuring durability and a premium look. Its symmetrical design allows a 90° rotation, giving drivers the flexibility to mount the display in portrait or landscape orientation.
With the DSS (Display Setup Software), you can fully customise the display to your needs. Configure up to 10 pages, each supporting 64 widgets, and monitor up to 128 sensors from the CAN Bus and internal inputs. The unit also includes 4 analogue inputs (0–5V) for integrating additional sensors, making it perfect for monitoring oil pressure, fuel pressure, EGT, and more.
The MFD32 supports a wide range of CAN protocols including UDS, KWP2000, OBD, TP2.0 and standalone ECUs, offering maximum compatibility across factory and aftermarket setups. Built-in CAN Bus Switching functionality and support for an optional external shift light add even more versatility for both road and track applications.
Installation is straightforward thanks to its 95 x 69mm dimensions and three M4 threaded sockets on the rear, providing a secure and flexible mounting solution.
Key Features
-
3.2" TFT capacitive touchscreen for clear visuals and intuitive control
-
Premium aluminium frame with symmetrical design for 90° rotation
-
Up to 10 configurable pages with 64 widgets per page
-
Supports up to 128 sensors via CAN Bus and internal sources
-
4 analogue inputs for oil/fuel pressure, EGT, boost, and more
-
Optional external shift light integration
-
CAN Bus Switching functionality for external device control
-
Supports UDS, KWP2000, OBD, TP2.0 & standalone ECU protocols
-
Built-in CAN Bus Logger for advanced data logging and analysis
-
Compact fitment (95 x 69mm) with secure rear mounting points
Connectivity & Extensions
Expand the functionality of your MFD32 Gen2 with CANchecked accessories:
-
CANchecked water/oil temperature sensors
-
CANchecked oil/fuel pressure sensors
-
CAN Bus Extension (MCE18)
-
CAN Bus Hub (CBD08)
Compatibility
BMW 1 Series (2004–2013)
-
E81 – 1 Series 3-Door Hatchback
-
E82 – 1 Series Coupe
-
E87 – 1 Series 5-Door Hatchback
-
E88 – 1 Series Convertible
-
BMW 1M Coupe (E82)
Available for LHD & RHD models.
