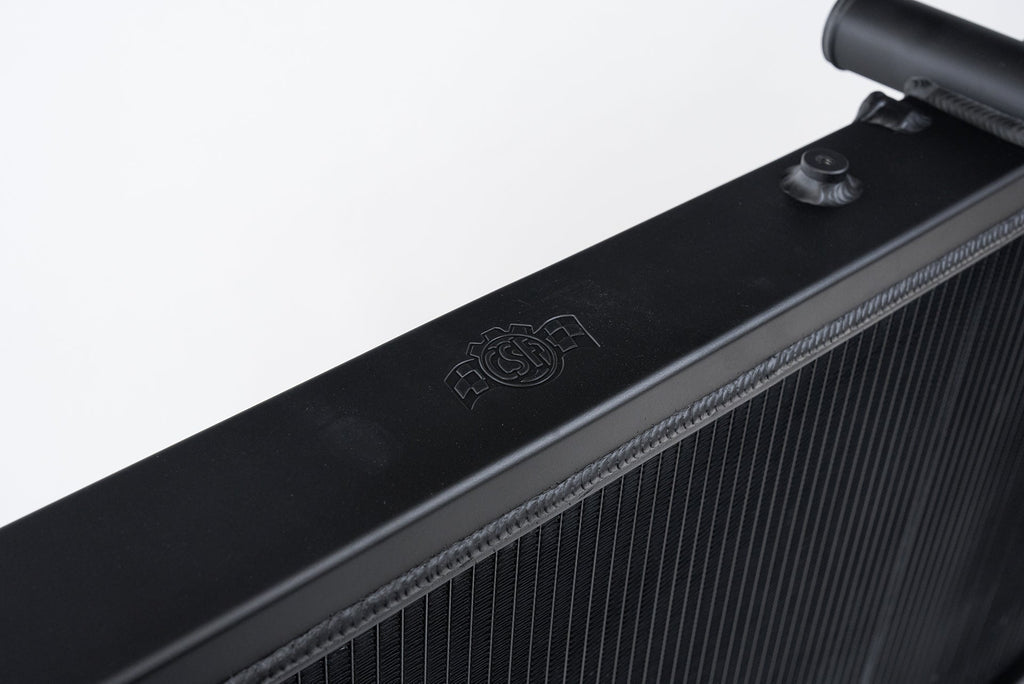

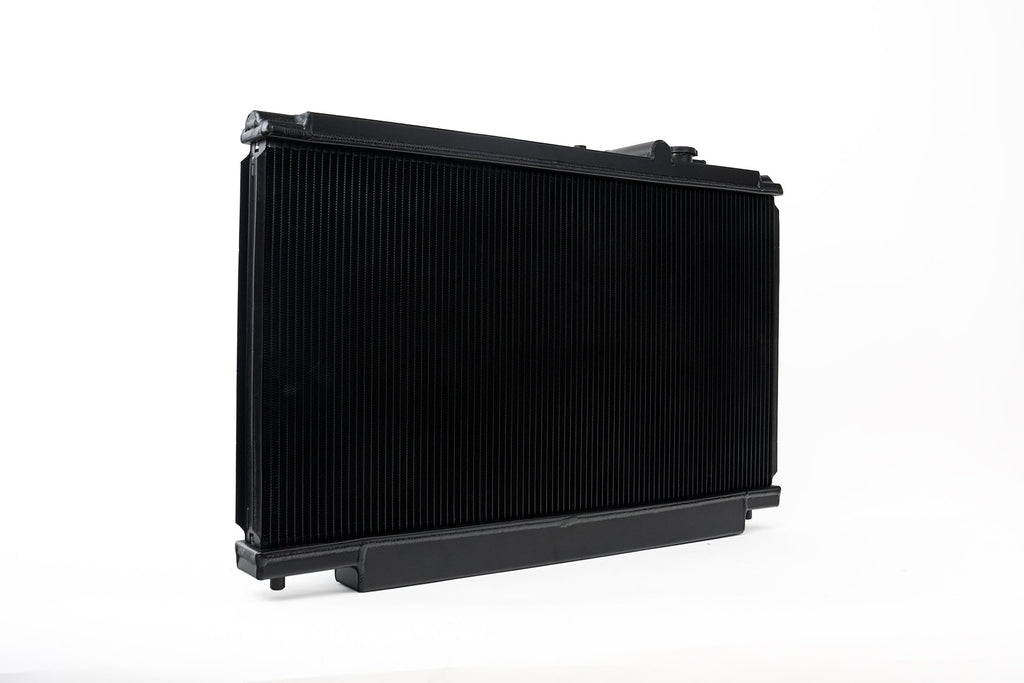

CSF 93-98 Toyota A80 Supra (NA/TT) High-Performance All-Aluminum Radiator - Black
Description
With over five decades of expertise in radiator manufacturing, CSF stands as a trusted leader in delivering high-quality cooling solutions. The CSF 93-98 Toyota A80 Supra (NA/TT) High-Performance All-Aluminum Radiator in black exemplifies this commitment to excellence, engineered specifically to maintain optimal engine temperatures and ensure peak performance of your MK4 Supra under all driving conditions.
This radiator is meticulously designed for both street use and competitive track environments, making it an essential upgrade for vehicles with high horsepower modifications or those engaged in motorsports requiring enhanced cooling capabilities. Its robust construction and advanced features provide reliable heat dissipation, safeguarding your engine against overheating and promoting longevity.
At the core of this radiator lies a 2-Row 42mm dual-core design incorporating CSF’s proprietary B-Tube Technology. Unlike conventional oval-shaped "O" tubes, the B-Tubes are uniquely engineered in a "B" shape, which are precision-formed and seam-brazed to create a stronger, lighter, and more efficient cooling element. This innovative design increases the heat transfer surface area by approximately 15% compared to traditional tubes, effectively delivering the cooling efficiency of two smaller tubes within the same spatial constraints. The dual liquid laminar flow facilitated by these B-Tubes enhances coolant circulation, optimizing thermal transfer and engine temperature regulation.

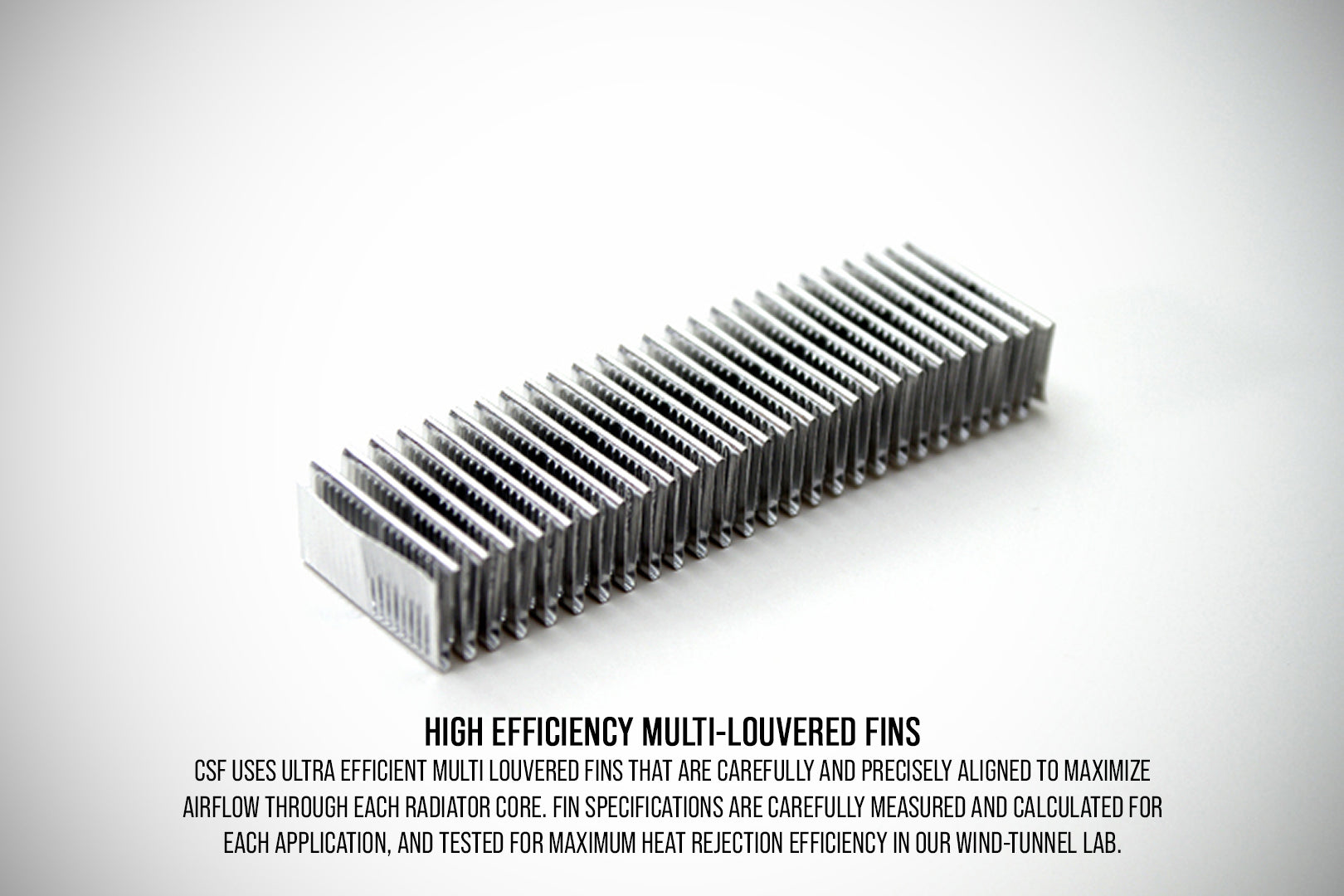

Complementing the core design are ultra-efficient multi-louvered fins with a 6.5mm fin height, precisely aligned to maximize airflow through the radiator. Each fin configuration is carefully calculated and rigorously tested in CSF’s wind tunnel laboratory to ensure superior heat rejection performance, meeting the demanding requirements of high-performance and racing applications.

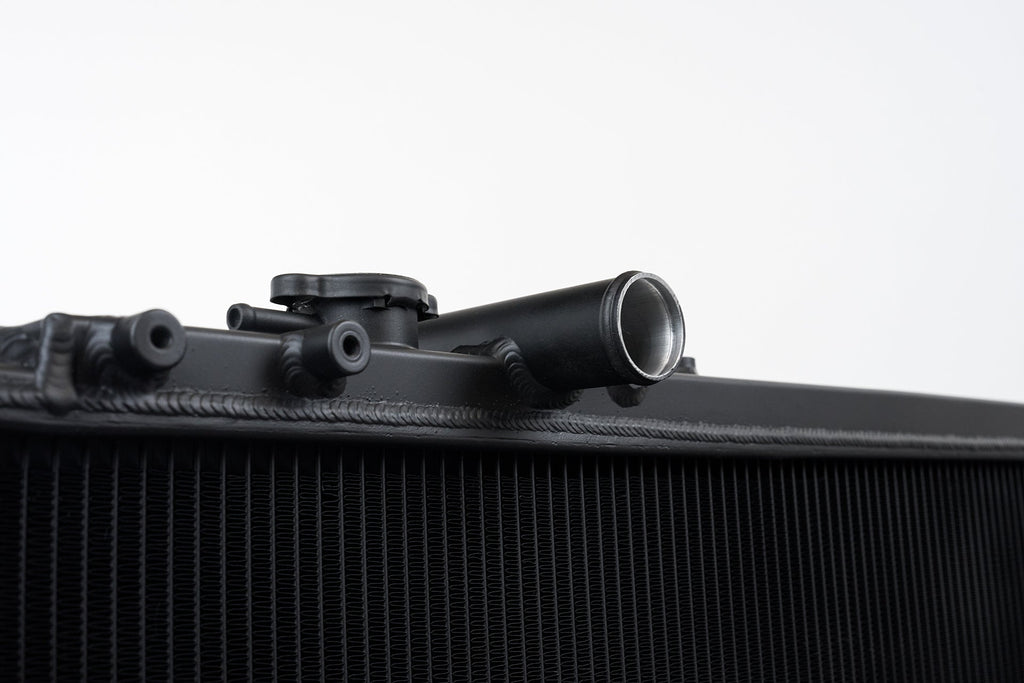

The CSF MK4 Supra radiator features a true "drop-in fit" design, allowing for straightforward installation without the need for modifications. All mounting brackets are CNC machined and welded, ensuring exceptional durability and a precise fit that aligns perfectly with the original equipment. The inlet and outlet connections are also CNC machined to match OEM specifications, enabling seamless compatibility with factory hoses or aftermarket alternatives.
Additional design elements include an all-aluminum race-style drain plug and a sleek black finish that not only enhances corrosion resistance but also provides a high-end, stealth aesthetic suitable for any engine bay. This radiator accepts all original attaching components such as quick-connect hoses, AC condenser, mounting brackets, and fan shroud, preserving the vehicle’s factory configuration while delivering superior cooling performance.
Features
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Black Finish for High-End Stealth Look
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 1993-1998 | Toyota | A80 | Supra | - | 3L L6 (Manual) | - |
| 1993-1998 | Toyota | A80 | Supra | - | Turbocharged 3L L6 (Manual) | - |
OEM Part Numbers
- Toyota: 16400 46290
- Toyota: 16400-46290
- Toyota: 1640046290
Warranty
Cooling Systems and Flexibles, Inc. (CSF) guarantees the quality and reliability of its High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was installed. For comprehensive warranty details, please refer to our Warranty Page.
SKU# 2882B Warranty Term: 2 years
