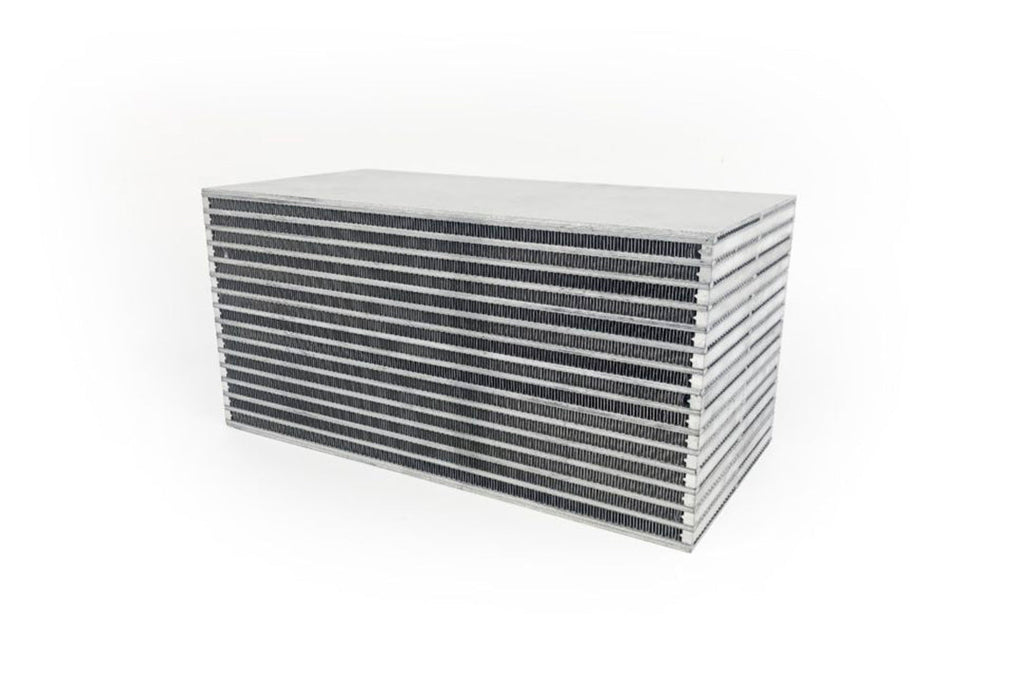

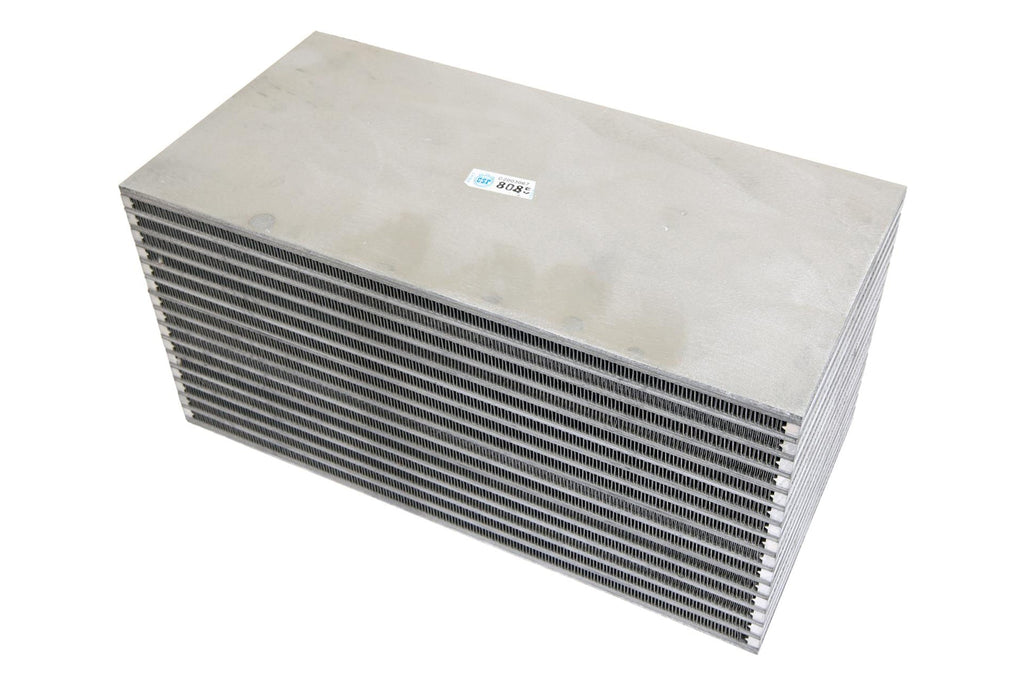

CSF Air-to-Water Bar & Plate Intercooler Core 12L x 6H x 6W
Description
The CSF Air-to-Water Bar & Plate Intercooler Core, measuring 12" x 6" x 6" (305mm x 150mm x 150mm), represents a pinnacle of engineering excellence and reliability in high-performance cooling solutions. Designed to support up to 1500 WHP, this intercooler core is an ideal component for custom-built, high-output applications where efficient heat dissipation and durability are paramount. Trusted by leading tuning and performance companies, the CSF intercooler core delivers consistent performance under extreme conditions, making it a preferred choice for professionals demanding uncompromising quality.
Each unit undergoes rigorous pressure testing at 120 psi to guarantee maximum reliability even in the most demanding boost environments. The manufacturing process is meticulously controlled within a clean room environment, where skilled technicians hand-build every core using precise jigs and fixtures to ensure perfect straightness. This attention to detail facilitates seamless welding and integration into custom intercooler assemblies. The use of gloves during assembly ensures the brazing surfaces remain uncontaminated, preserving the integrity of the joints and enhancing long-term durability.

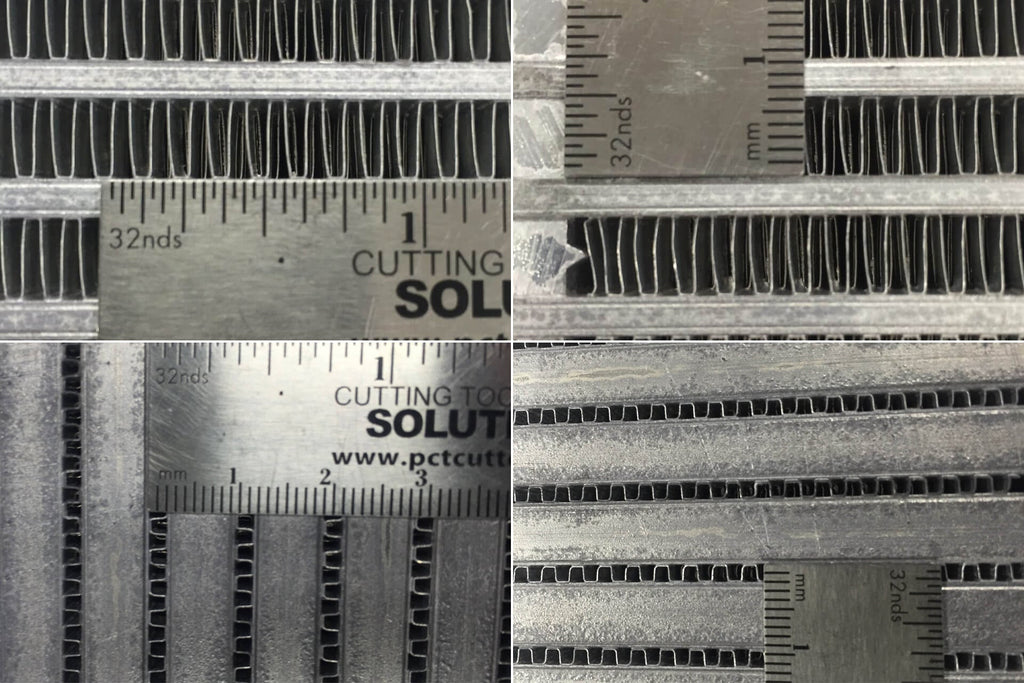

The core features a sophisticated multi-louvered, high-precision staggered fin design on both the ambient and pressure sides, optimizing heat transfer efficiency. This design maximizes cooling capacity by enhancing airflow and thermal exchange, which is critical for maintaining optimal intake air temperatures and improving engine performance. CSF employs state-of-the-art digital vacuum brazing ovens—12 in total—to batch braze these cores, ensuring uniform quality and structural integrity across every unit produced.
Features
- Heavy-Duty Bar & Plate Intercooler Core engineered for high-performance applications
- Pressure Tested at 120 psi to ensure durability under extreme boost conditions
- Hand-Built Using Precision Jigs & Fixtures for a perfectly straight core, facilitating easy and accurate welding
- Manufactured in a Controlled Clean Room Environment with Gloved Assembly to maintain brazing surface cleanliness
- Multi-Louvered High Precision Staggered Fin Design on both ambient and pressure sides for superior heat transfer
- Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens, ensuring consistent quality and strength
- Subjected to Strict Quality Control Protocols including individual pressure testing for each core
- Individually Boxed and Protected to ensure secure transport via single piece mail services
- Dimensions: 12" x 6" x 6" (305mm x 150mm x 150mm)
- Rated for 1500 WHP capacity
- Air-to-Water intercooler configuration
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) stands behind the quality and durability of its High-Performance Cooling Systems. Under normal use and service conditions, CSF warrants this intercooler core to the original purchaser of the vehicle in which it is installed. This warranty reflects CSF’s commitment to delivering products that meet stringent business and quality standards. For comprehensive warranty details, please visit our Warranty Page.
SKU# 8085 Warranty Term: 2 years
