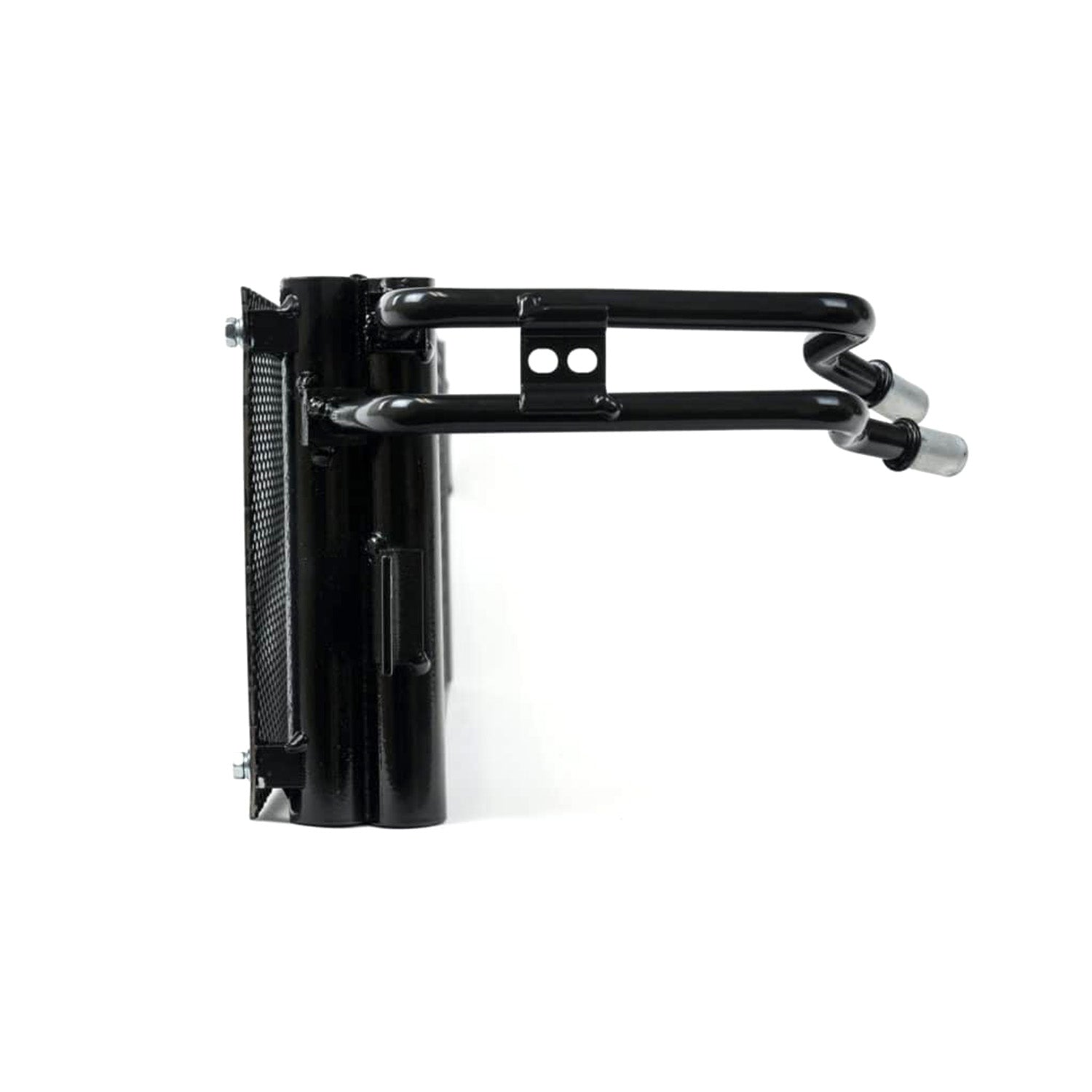

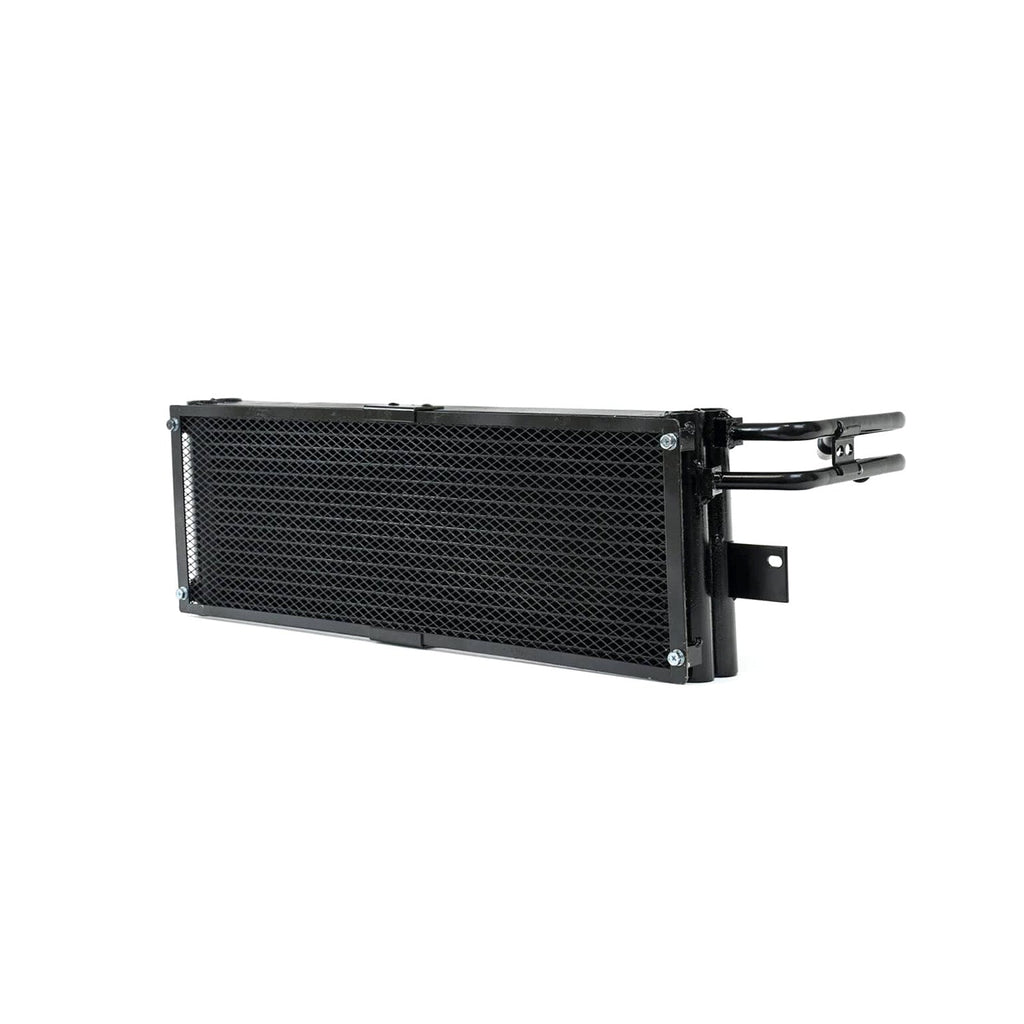

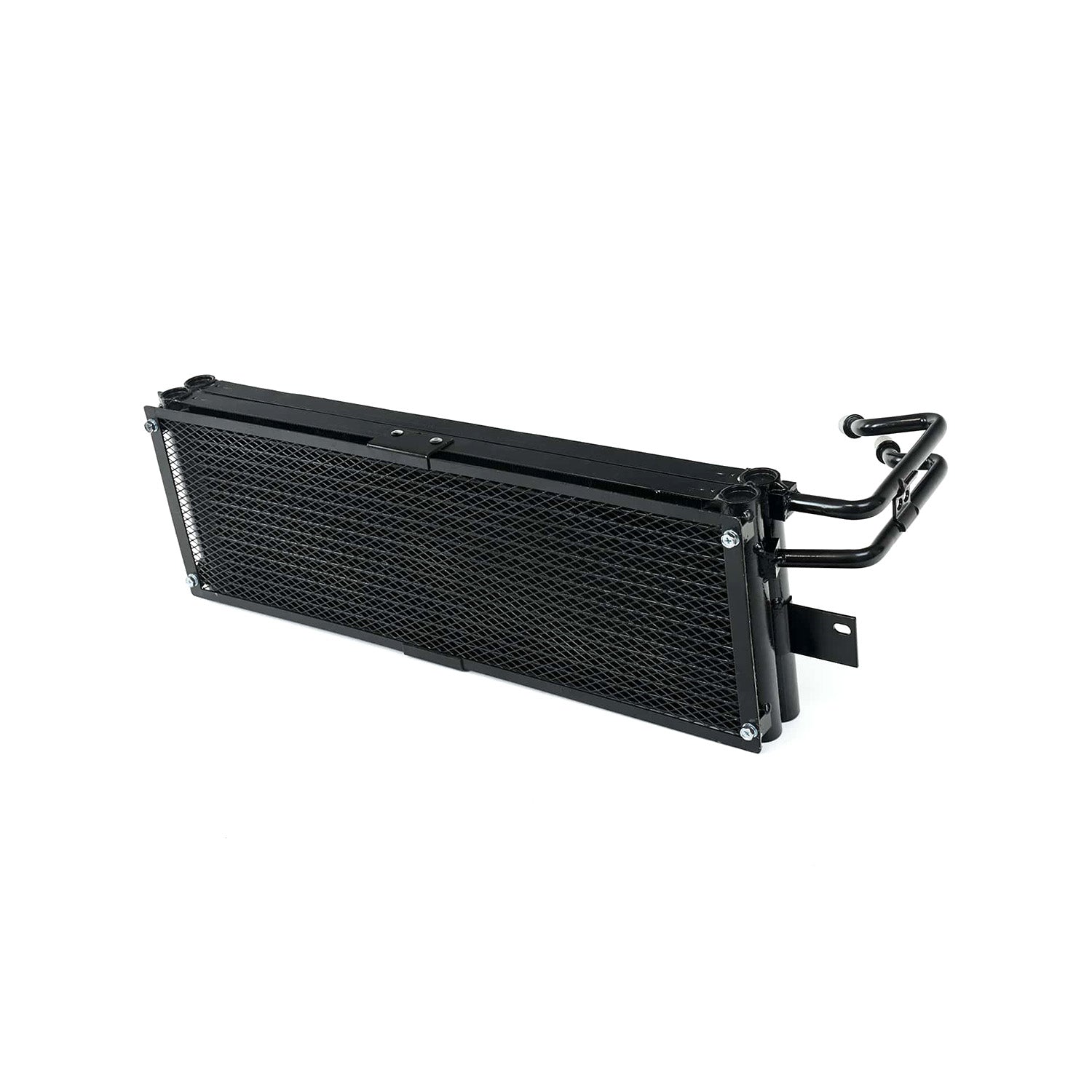

CSF BMW M2/M3/M4 S58 ZF8 Transmission Oil Cooler With Rock Guard (G80/G81/G82/G83/G87)
Description
While the OEM Transmission Cooler is adequate for the G8X in stock form, it starts to come up a bit short on modified/tuned vehicles. Specifically, ones that see heavy track/competition use. Transmission oil temperatures have a major impact on the shifting performance of your automatic transmission. If the fluid passes optimal temperatures you will start to see some delays in shifting. Sluggish shifting can be quite frustrating, but the real concern is the damage that can be done to the transmission when temperatures get too high. There are often cases where drivers don’t notice the change in shifting performance due to the gradual onset, but the damage is still being done slowly on a very expensive and important component.
By changing from the OEM single-core design to a dual-core, CSF was able to increase the overall volume by 194%. This design offers a drastic improvement in heat dissipation and increases the fluid capacity of the coolers by ~94%. Utilising CSF’s AC Condenser Technology, a 1-Row Super-High Pressure 16mm 9-Channel Microtube design optimizes oil flow and offers maximum surface area contact. These features combine to offer the best possible heat dissipation from the system.

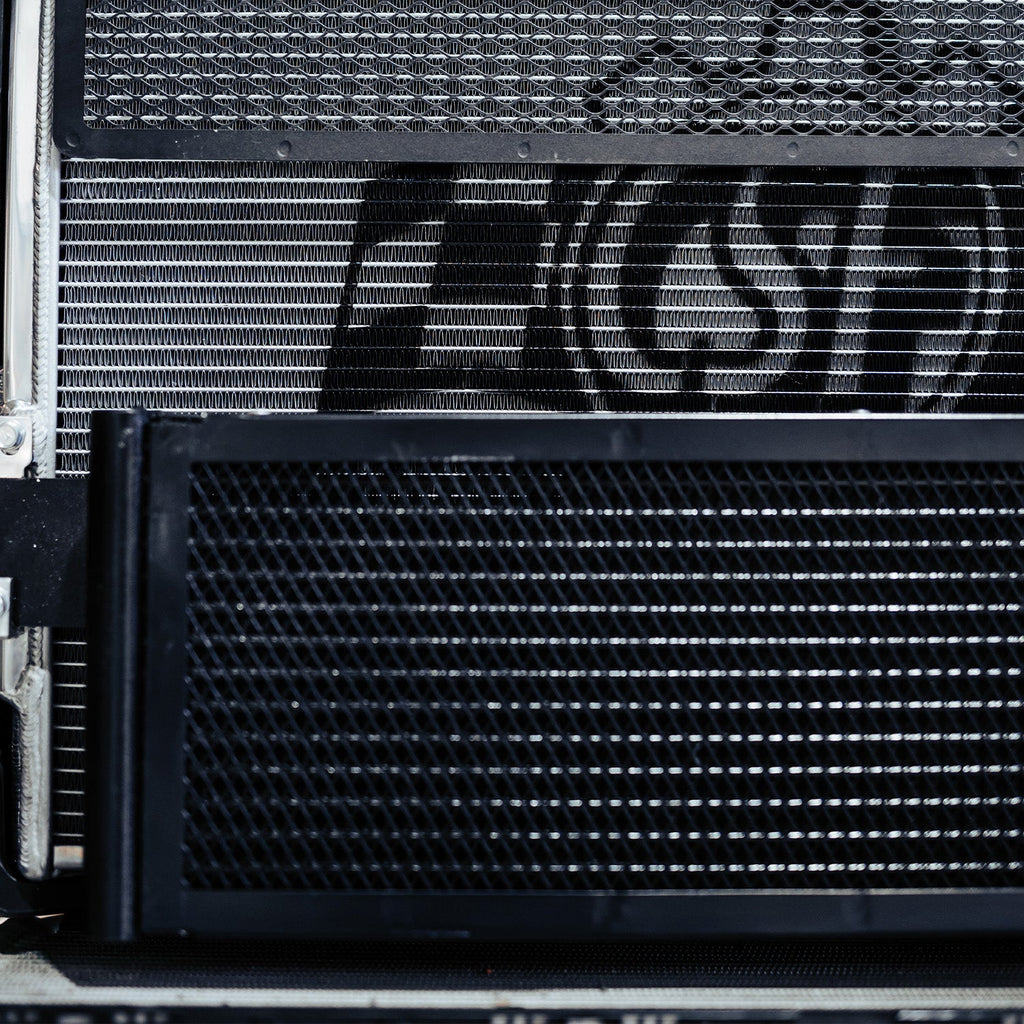

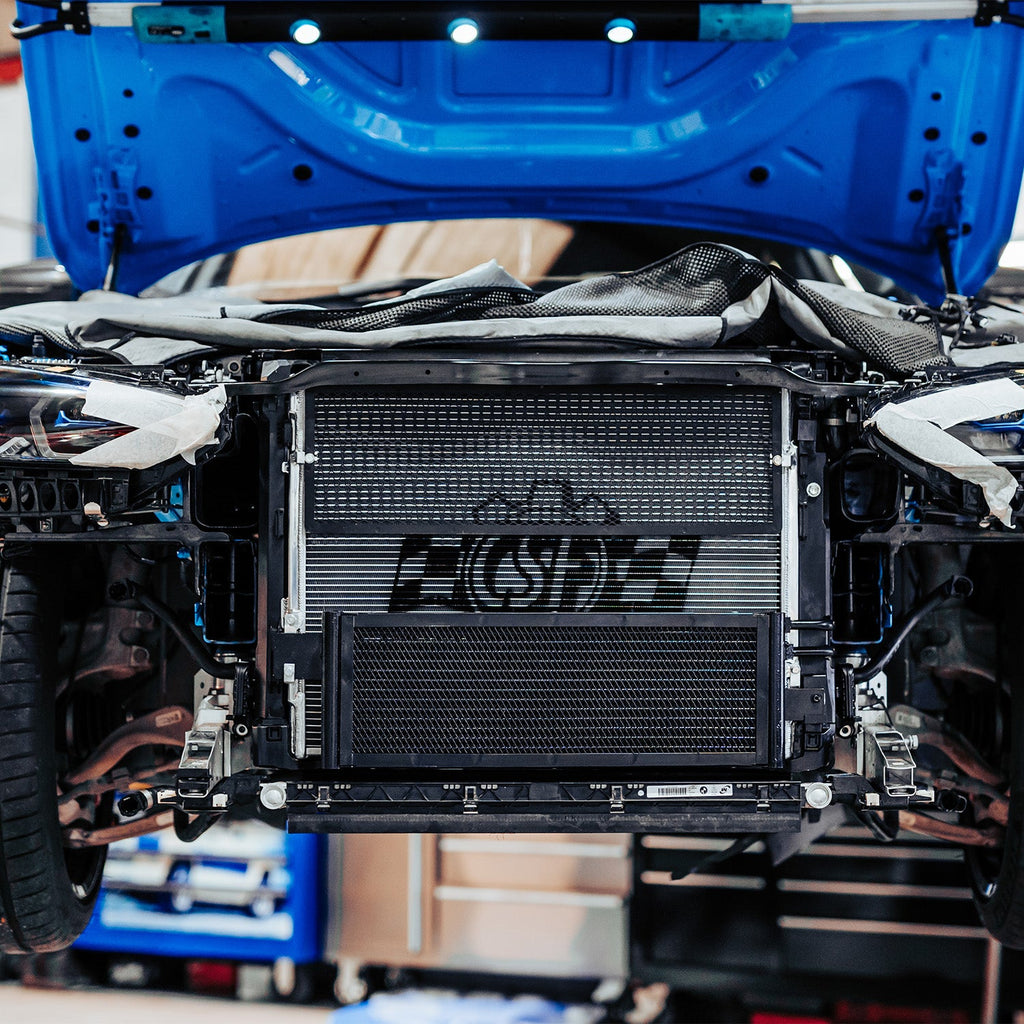

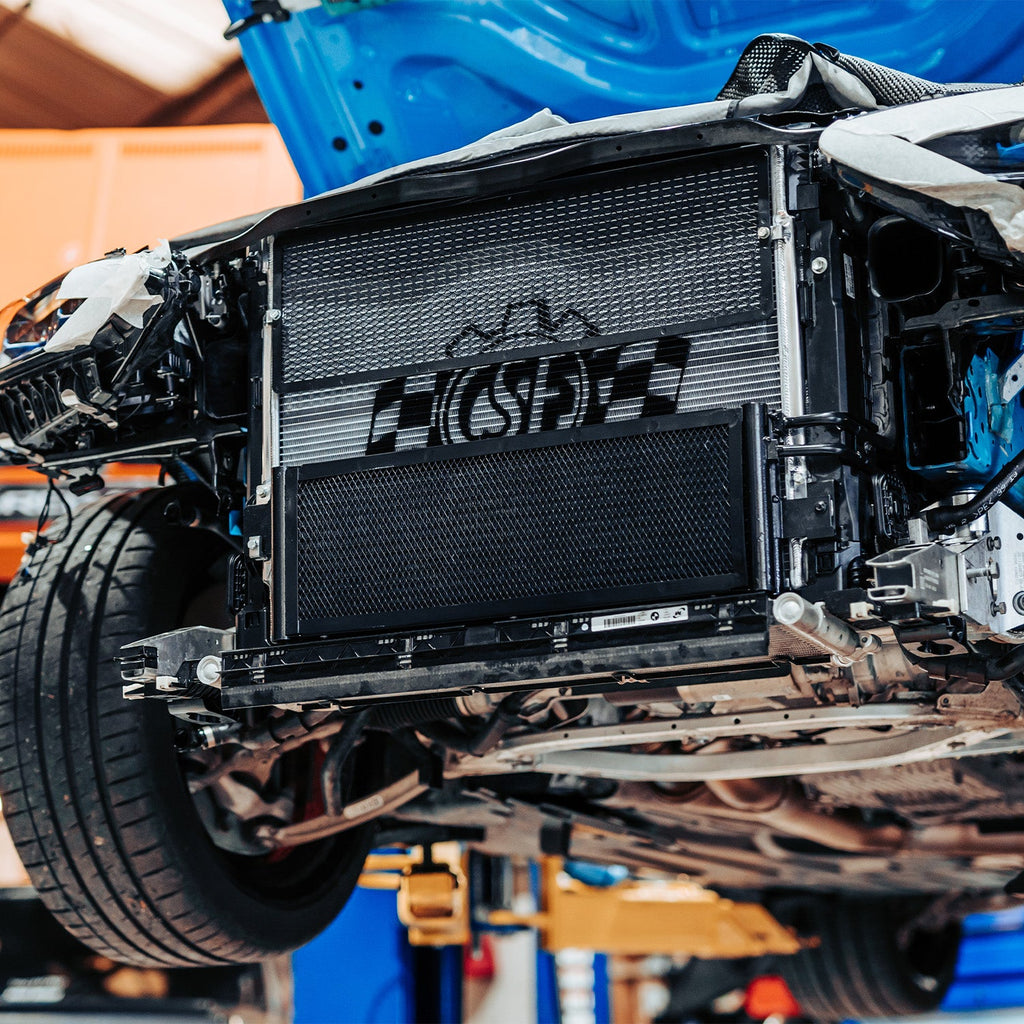

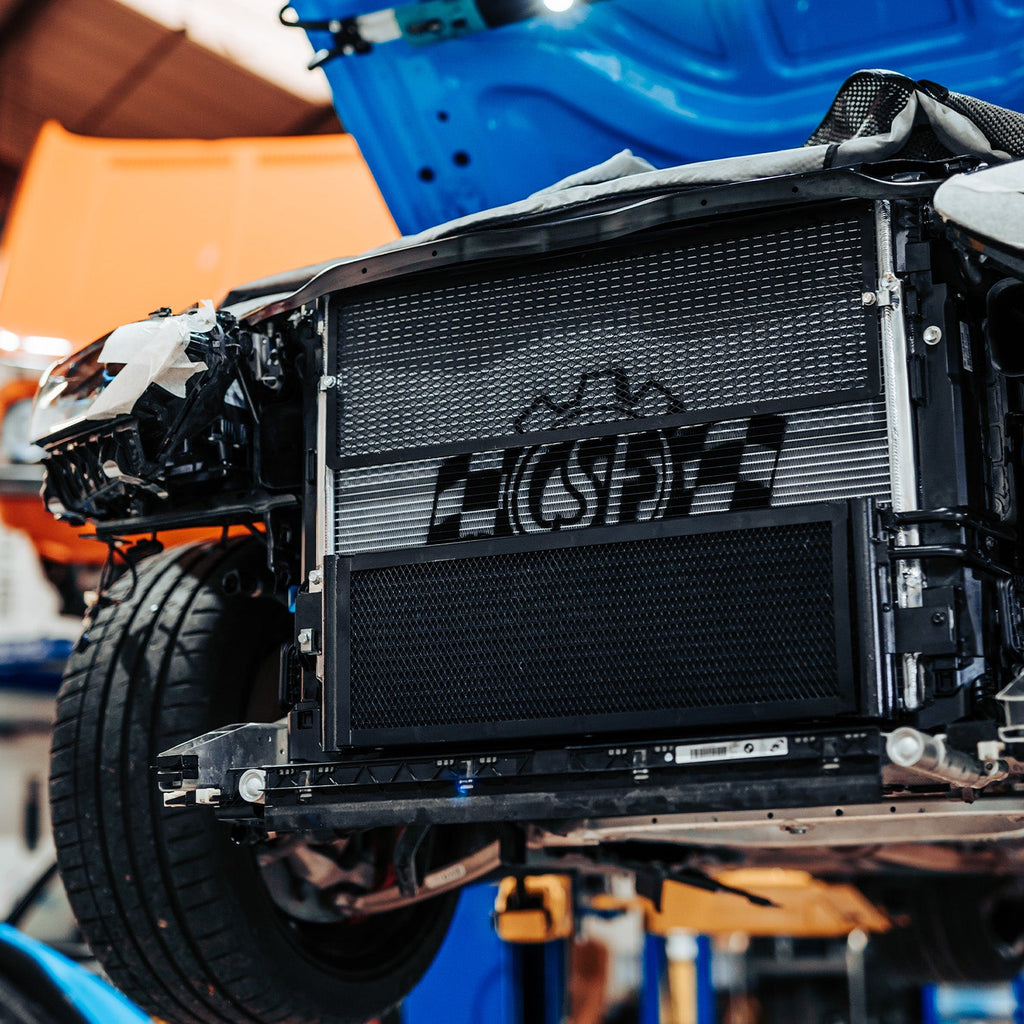

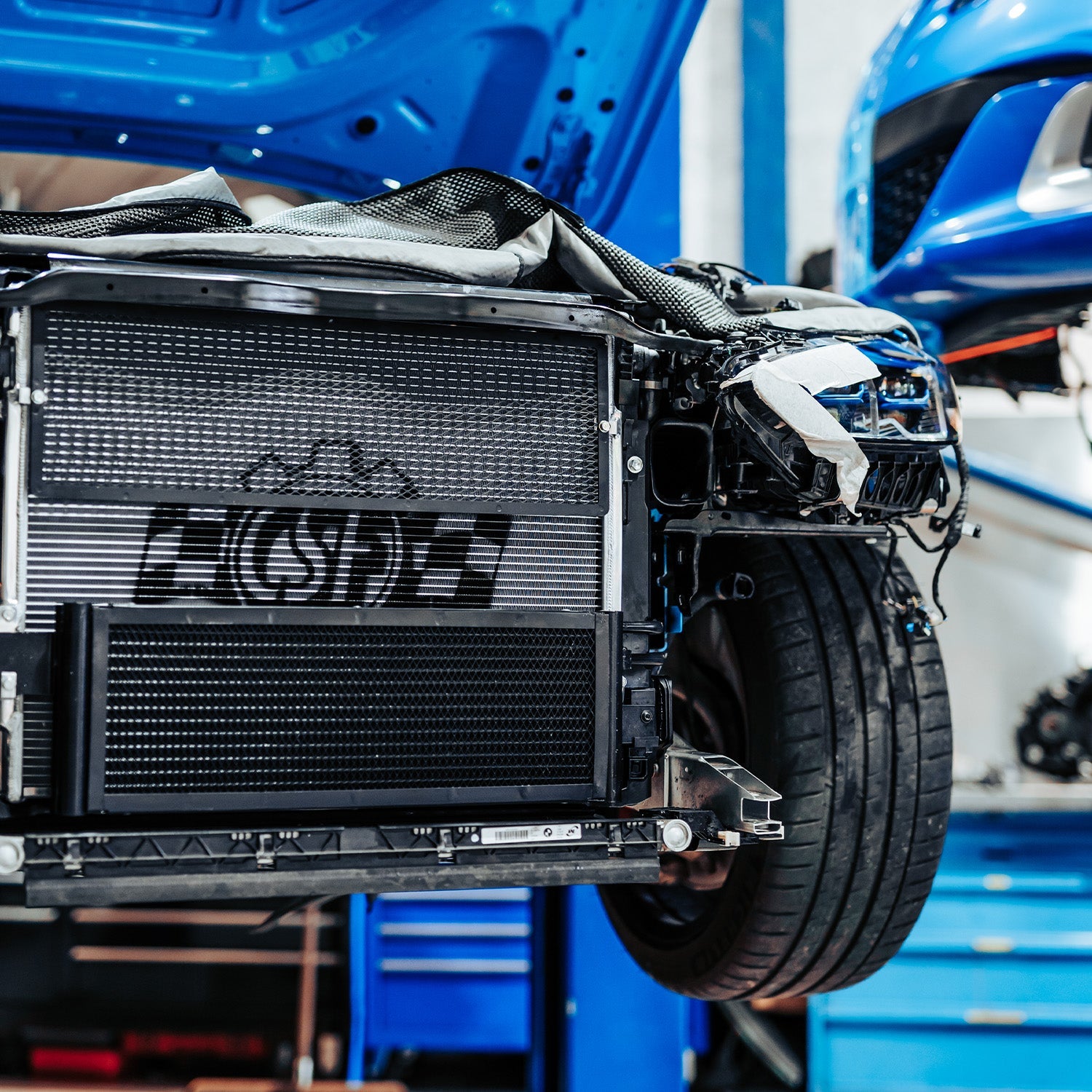

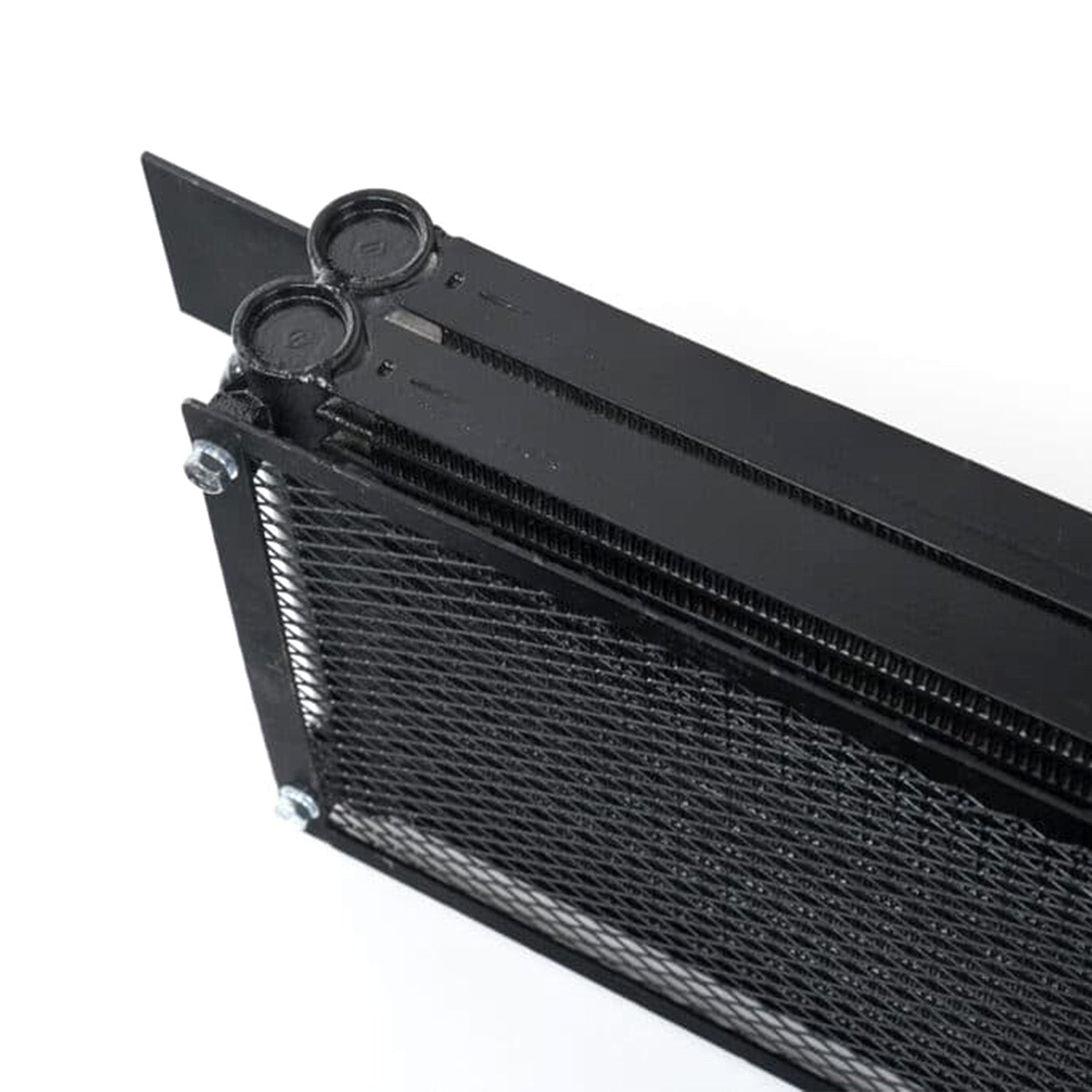

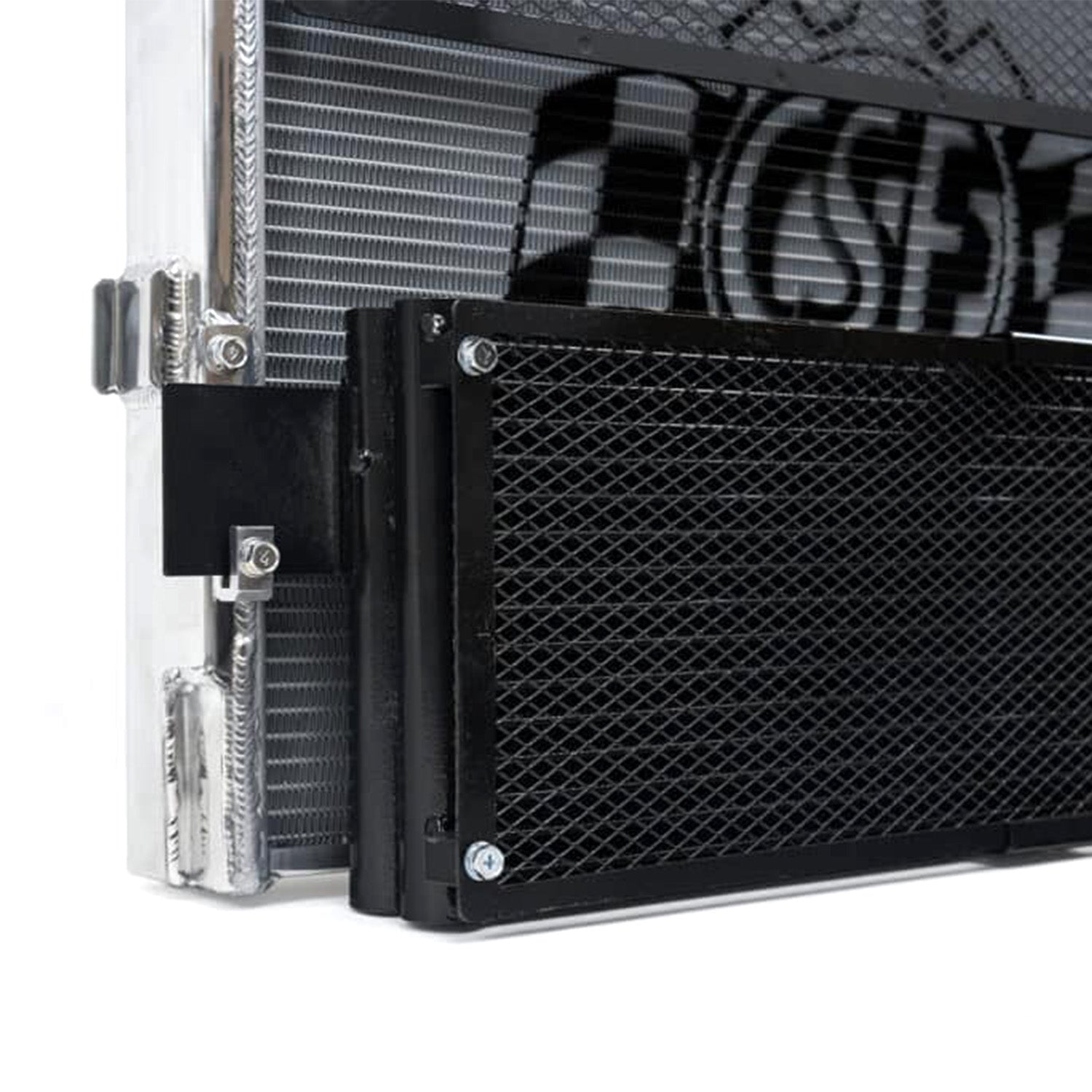

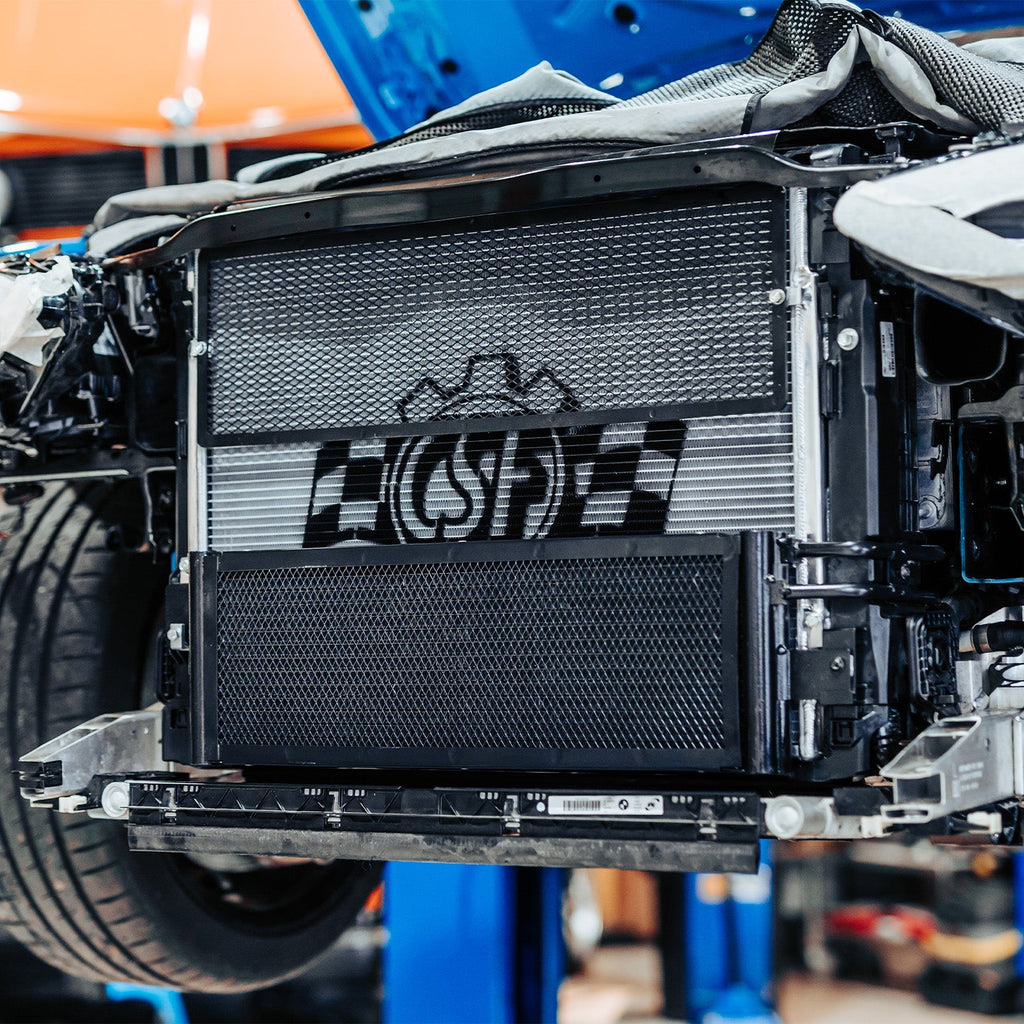

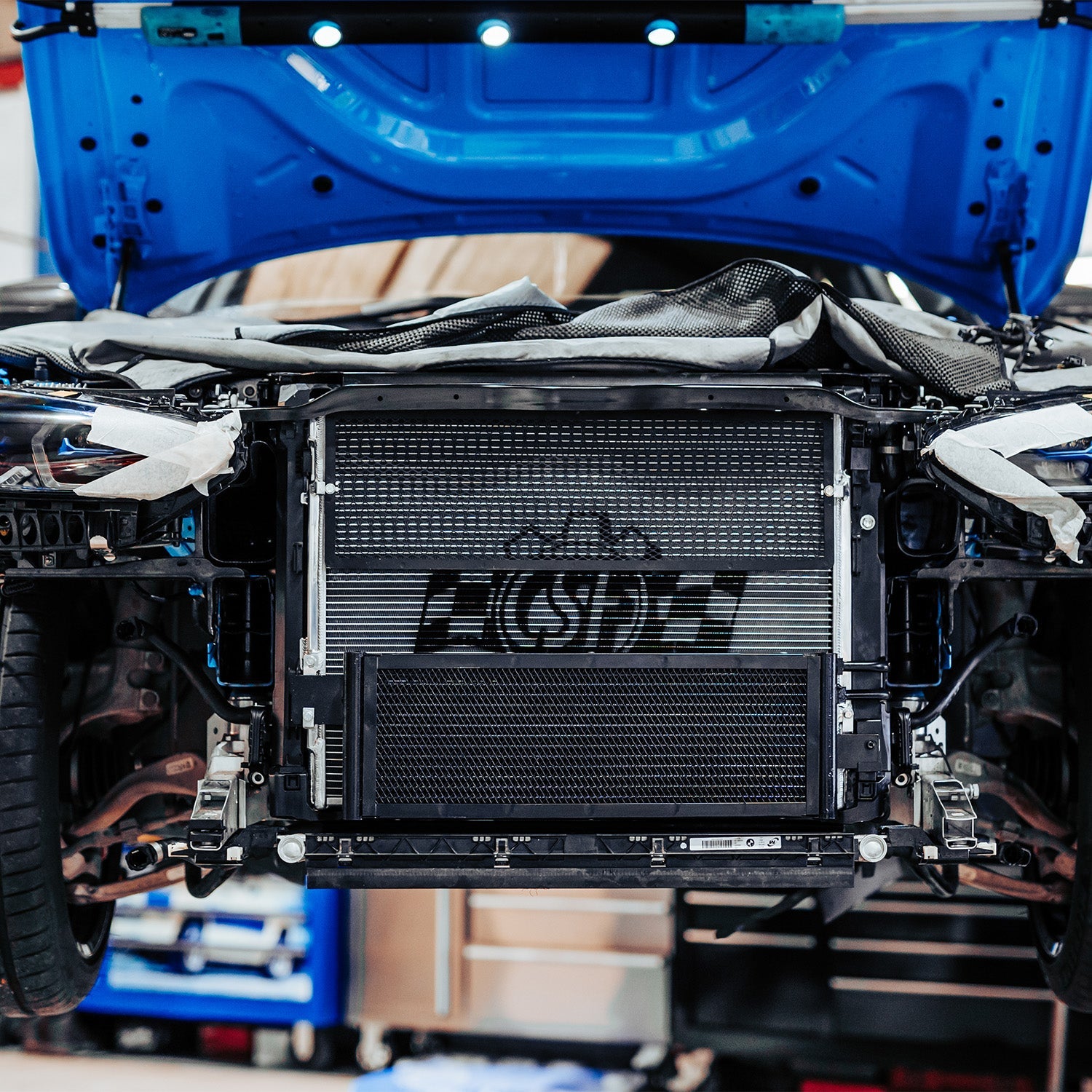

CSF knows the kind of punishment the front of a car can take on or off the track. The wrong bit of debris flying through the front grille can quickly punch a hole in a cooler. Because the Transmission cooler sits at the very front of the centre cooling stack, it is quite vulnerable to damage. In addition, “open face” race-style grilles have become quite popular on the G8X. These grilles can add to the risk of debris passing through. The factory grille is the only form of protection for the OEM transmission cooler. However, this still isn’t the level of protection many race teams and enthusiasts are comfortable with. To address this concern, CSF has incorporated a replaceable rock guard to keep your cooler safe and your G8X running strong in the event of debris making it through the front grille.
PRODUCT SPECIFICATION

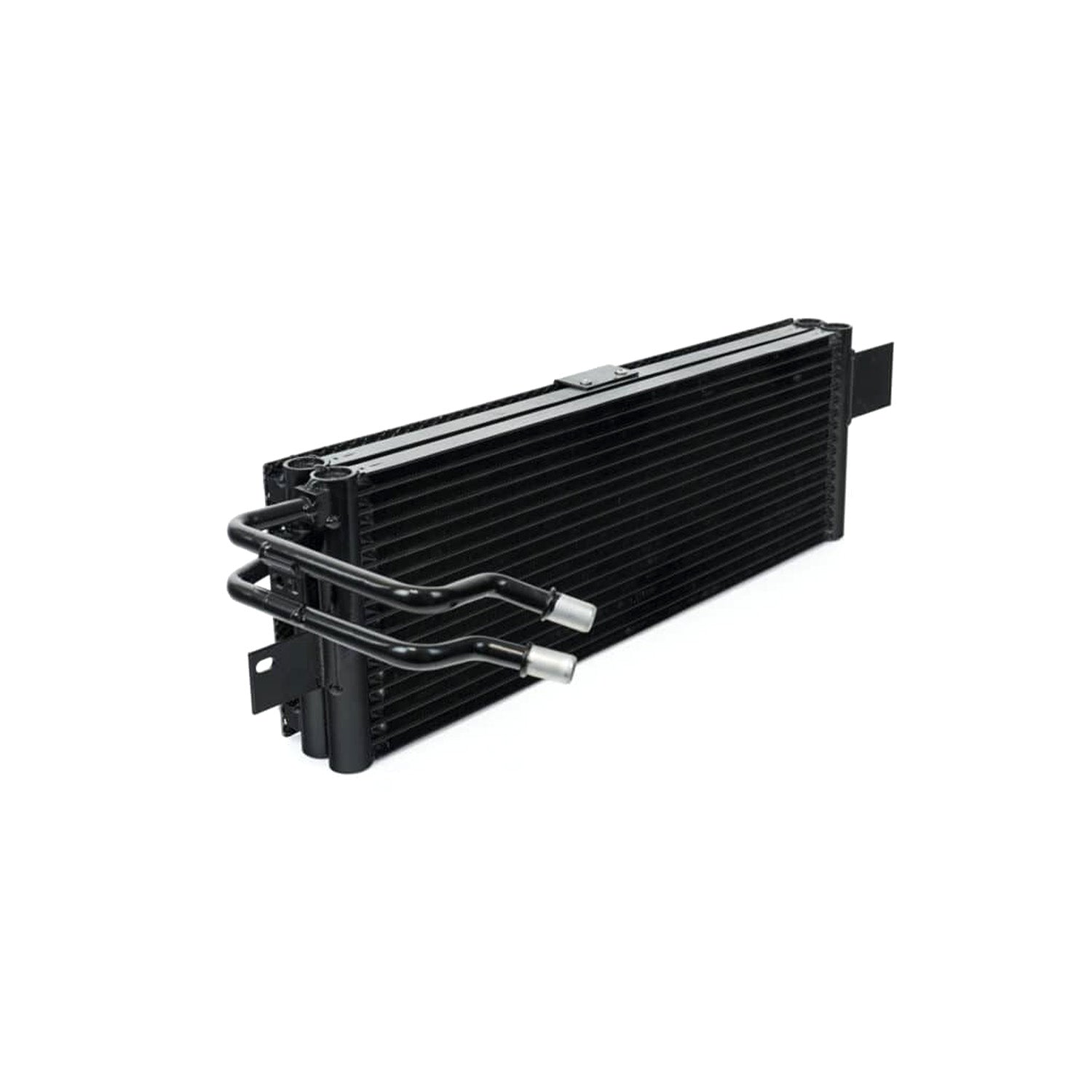

- Dual-Core Design
- 194% Increase in Core & Tank Volume
- 94% Increase in Fluid Capacity Compared to OEM (CSF 1700ml vs. OEM ~875ml)
- Two 22mm Stacked Cores = 44mm Core Thickness vs. OEM 28mm Core Thickness
- Rear Cooler: 16 Rows vs. OEM 14 Rows (191mm Overall Height vs. OEM 155mm)
- Front Cooler: Additional 16 Rows
- Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
- OEM Style “Quick Connect” Inlet/Outlet Connections
- Drop-in Fit Requires No Modifications to Install
- Can be Installed With CSF’s High-Performance Heat Exchanger or with the OEM Cooling System
- 2-Year Limited Warranty
- Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
COMPATIBILITY
- BMW G80 M3 Saloon (2021+)
- BMW G80 M3 Competition Saloon (2021+)
- BMW G81 M3 Touring (2023+)
- BMW G81 M3 Competition Touring (2023+)
- BMW G82 M4 Coupe (2021+)
- BMW G82 M4 Competition Coupe (2021+)
- BMW G83 M4 Convertible (2021+)
- BMW G83 M4 Competition Convertible (2021+)
- BMW G87 M2 Coupe (2023+)
Automatic (ZF8) vehicles ONLY.
