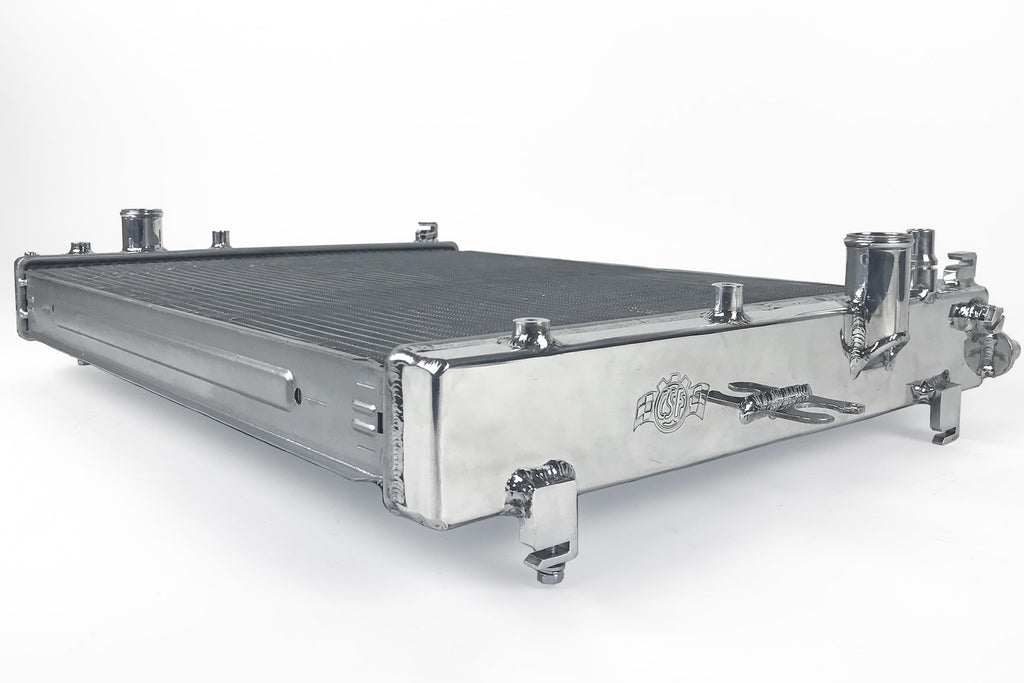

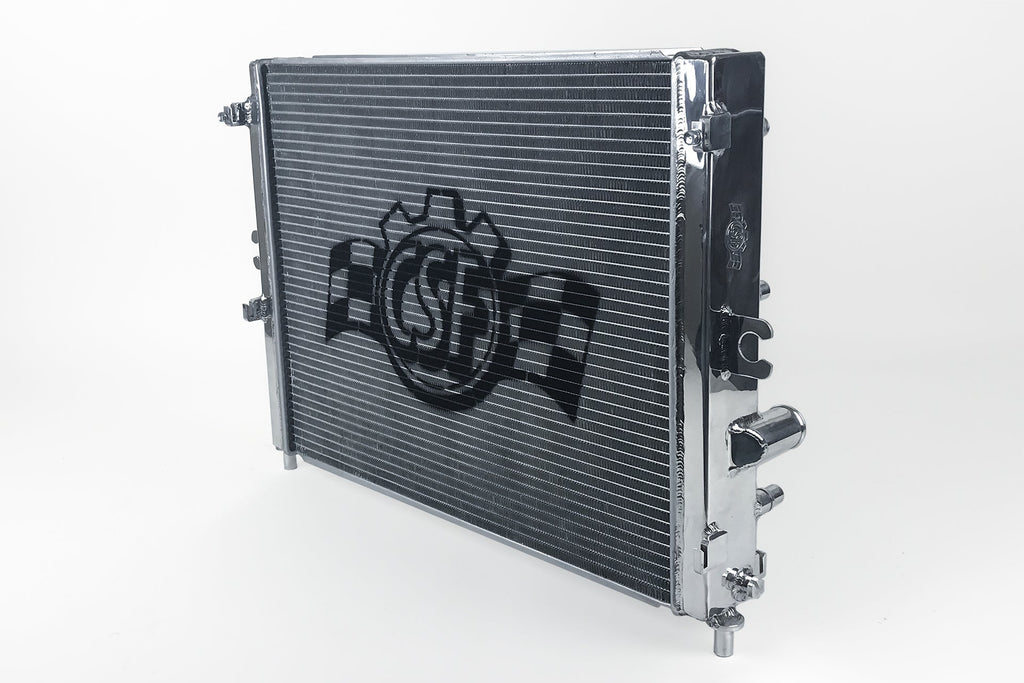

CSF Chevrolet C7 Corvette Stingray / Grand Sport / Z06 All-Aluminum Radiator
Description
With over five decades of expertise in radiator manufacturing, CSF stands as a leader in delivering high-performance cooling solutions tailored for demanding automotive applications. The CSF Chevrolet C7 Corvette Stingray / Grand Sport / Z06 All-Aluminum Radiator epitomizes this commitment to quality, reliability, and advanced engineering. Designed to maintain optimal engine temperatures under intense conditions, this radiator ensures your C7 Corvette operates with maximum efficiency whether on the street or the track.
This radiator incorporates a 2-Row core enhanced by CSF’s proprietary B-Tube Technology. Unlike conventional oval-shaped “O” tubes, the B-Tube features a distinctive “B” shape, which is meticulously formed and seam-brazed to guarantee superior structural integrity. This innovative design allows the use of thinner, lighter aluminum material without compromising strength, resulting in improved cooling efficiency. The B-Tube’s central inlet and brazed seam increase the heat transfer surface area by approximately 15% compared to standard tubes, effectively delivering the cooling performance equivalent to two smaller tubes within the same spatial constraints. This configuration facilitates dual liquid laminar flow, optimizing coolant circulation and heat dissipation.

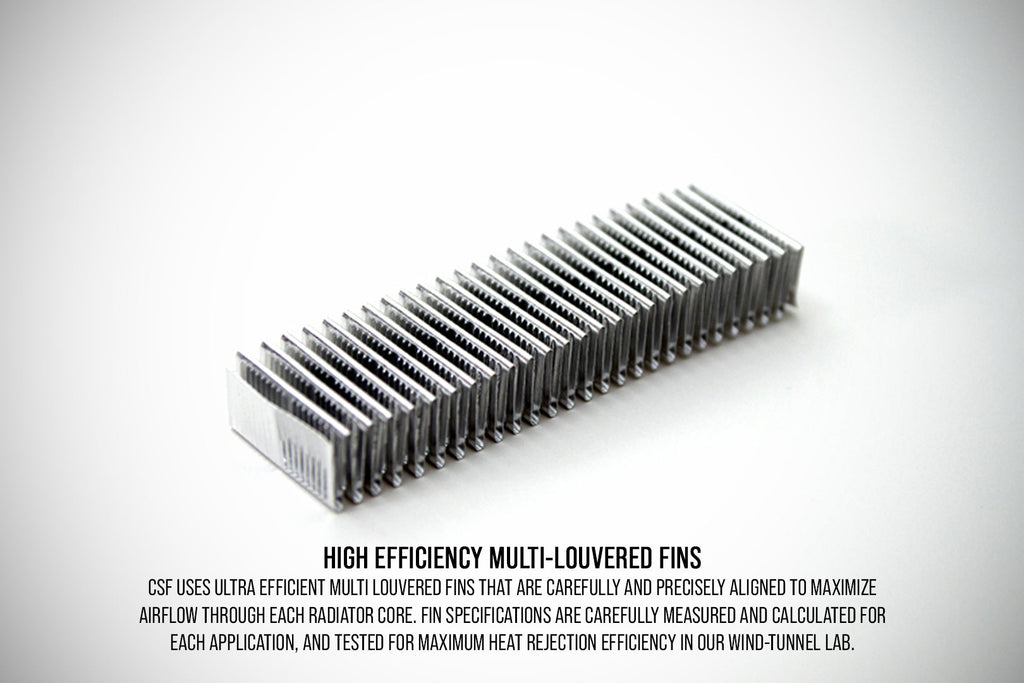

Complementing the advanced tubing, the radiator employs ultra-efficient multi-louvered fins that are precisely aligned to maximize airflow through the core. Each fin’s specifications are rigorously calculated and tested in CSF’s wind-tunnel laboratory to ensure peak heat rejection performance. This meticulous attention to detail guarantees that the radiator performs reliably under the most demanding conditions, providing consistent cooling for high horsepower builds and motorsport environments alike.

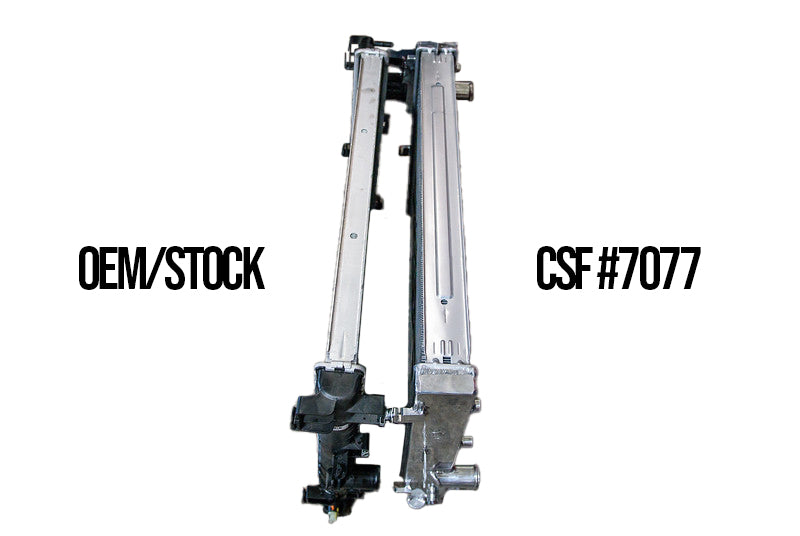

The CSF C7 Corvette radiator is engineered as a true “drop-in fit” replacement, eliminating the need for modifications during installation. All brackets are CNC machined and welded to OEM standards, ensuring exceptional durability and precise fitment. The inlet and outlet connections mirror the original equipment manufacturer (OEM) specifications, allowing seamless integration with existing OEM or aftermarket hoses. This design philosophy underscores CSF’s dedication to delivering products that combine ease of installation with uncompromising performance.
Features
- Significantly reduced engine temperatures to support maximum vehicle performance and longevity
- 2-Row, 52mm core incorporating CSF’s exclusive B-Tube Technology for enhanced heat transfer
- 8mm fin height with a multi-louvered design to maximize surface area contact and airflow efficiency
- Triple-pass flow structure engineered to achieve the lowest possible coolant output temperatures
- Individually leak and pressure tested to ensure reliability and durability under strenuous conditions
- CNC machined brackets and fittings for precise fit and long-lasting structural integrity
- Integrated all-aluminum race-style bleeder screws for efficient air removal and system maintenance
- Smooth satin finish providing corrosion resistance and a refined aesthetic
- True “drop-in fit” design facilitating straightforward installation without modifications
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2017-2019 | Chevrolet | C7 | Corvette | Grand Sport | 6.2L V8 | - |
| 2014-2019 | Chevrolet | C7 | Corvette | Stingray | 6.2L V8 | - |
| 2015-2019 | Chevrolet | C7 | Corvette | Z06 | Supercharged 6.2L V8 | - |
OEM Part Numbers
- Chevrolet: 23267151
- Chevrolet: 23155249
Warranty
Cooling Systems and Flexibles, Inc. (CSF) guarantees the quality and performance of its High-Performance Cooling Systems under normal use and service conditions. This warranty extends to the original purchaser of the vehicle in which the product was initially installed. For detailed warranty information, please visit our Warranty Page.
SKU# 7077 Warranty Term: 2 years
