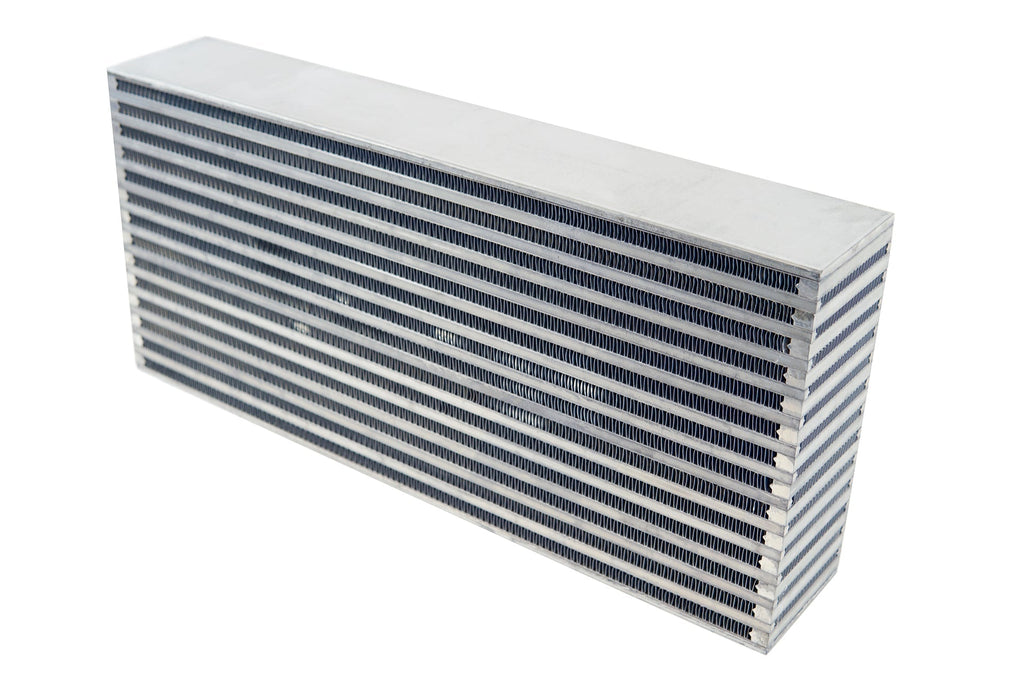

CSF High-Performance Bar & plate Intercooler Core 22x10x4
Description
The CSF High-Performance Bar & Plate Intercooler Core, measuring 22" x 10" x 4", represents a pinnacle of engineering designed to meet the rigorous demands of high-output engines. Trusted by leading tuning and performance companies worldwide, this intercooler core is engineered to support up to 900 WHP, making it an ideal choice for custom high-performance intercooler builds. Its horizontal flow design ensures optimal air distribution, enhancing cooling efficiency and contributing to sustained engine performance under extreme conditions.
Each intercooler core undergoes meticulous pressure testing at 120psi, guaranteeing maximum reliability even in the most demanding boost applications. The manufacturing process is characterized by precision and care: cores are hand-built within a controlled clean room environment at the CSF factory, utilizing specialized jigs and fixtures to ensure perfect straightness. Technicians employ gloves throughout assembly to maintain a pristine surface essential for effective brazing and future welding operations, thereby upholding the highest standards of quality and durability.

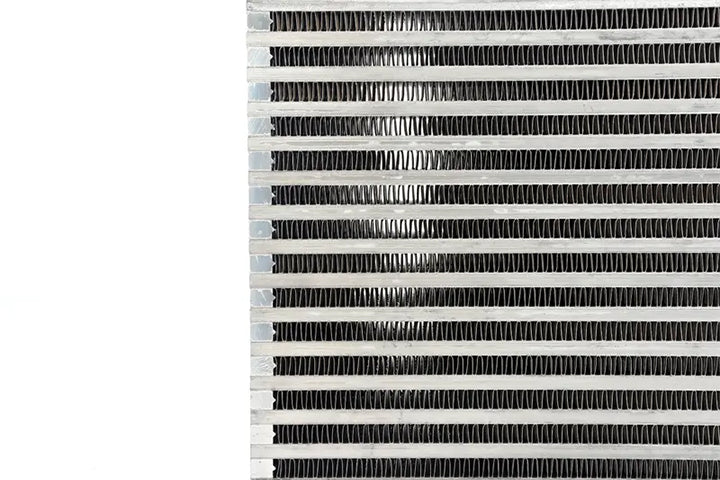

One of the core’s defining features is its multi-louvered, high-precision staggered fin design, applied to both ambient and pressure sides. This advanced fin configuration maximizes heat transfer efficiency, facilitating superior cooling performance that helps maintain optimal intake air temperatures. Such design considerations are critical in preserving engine power and reliability, particularly during prolonged periods of high boost or track use.
Features
- Heavy-Duty Bar & Plate Construction for Enhanced Durability
- Pressure Tested at 120psi to Ensure Maximum Reliability in Extreme Boost Conditions
- Hand-Built Using Precision Jigs & Fixtures for a Perfectly Straight Core, Facilitating Easy and Accurate Welding
- Manufactured in a Clean Room Environment with Gloves to Guarantee Proper Brazing and a Clean Surface for Future Welding

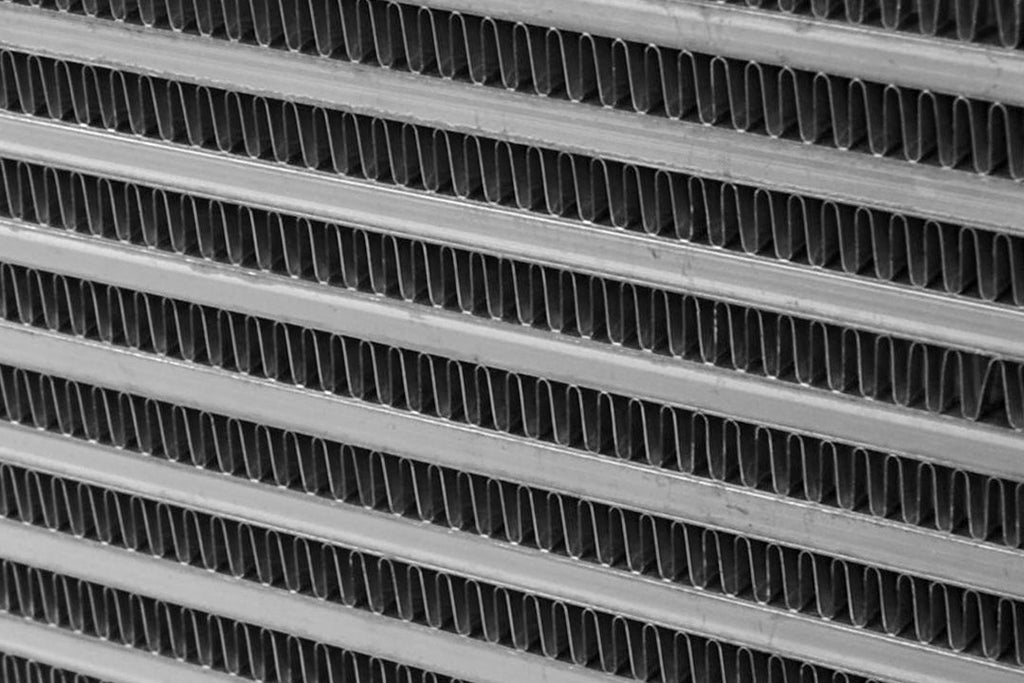

- Multi-Louvered High Precision Staggered Fin Design on Both Ambient and Pressure Sides for Optimal Heat Transfer
- Batch Brazed in CSF’s Advanced Digital Vacuum Brazing Ovens (12 Ovens in Total) to Ensure Consistent Quality
- Subjected to Strict Quality Control and Individual Pressure Testing for Reliability Assurance
- Individually Boxed and Protected to Secure Transport via Single Piece Mail Services
- Dimensions: 22" x 10" x 4" (560mm x 250mm x 100mm)
- Rated for 900 Horsepower (WHP)
- Cross-Flow Core Design for Efficient Airflow
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) stands behind the quality and reliability of its High-Performance Cooling Systems. Under normal use and service, CSF warrants this product to the original purchaser of the vehicle in which it was originally installed. For comprehensive warranty details and terms, please visit our Warranty Page.
SKU# 8174 Warranty Term: 2 years
