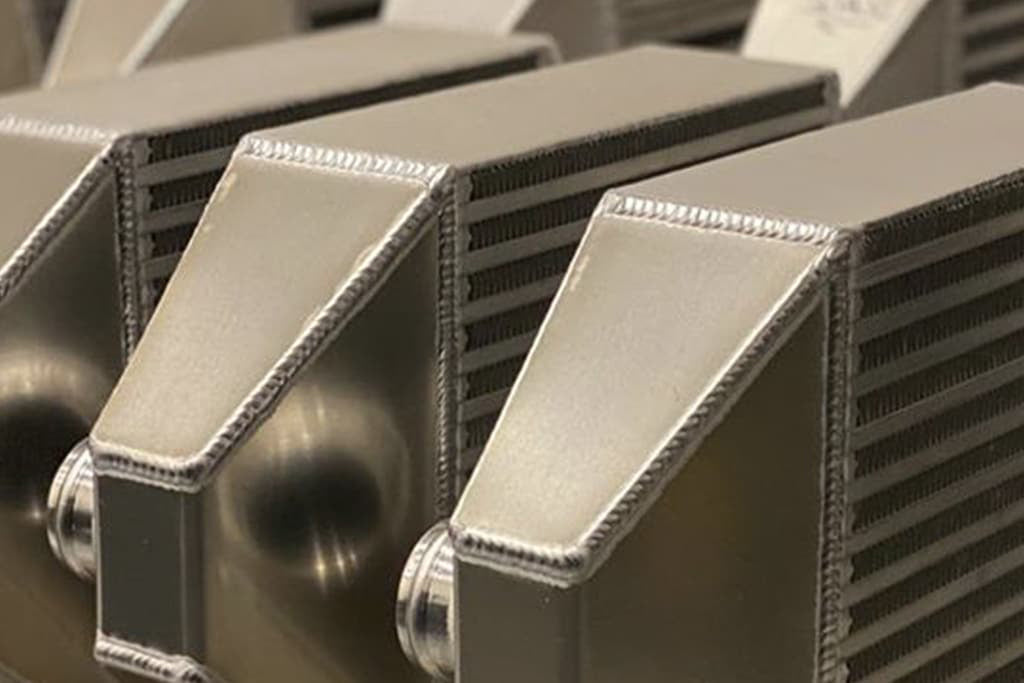

CSF High-Performance Bar & Plate Intercooler Core 24x12x3
Description
The CSF High-Performance Bar & Plate Intercooler Core, measuring 24" x 12" x 3", exemplifies engineering excellence tailored for demanding automotive applications. Designed to support up to 850 WHP, this intercooler core is an optimal choice for custom high-performance setups requiring superior cooling efficiency and durability. Its horizontal flow design ensures effective air passage, maximizing heat dissipation and maintaining optimal intake temperatures under extreme boost conditions.
Manufactured with meticulous attention to detail, each core undergoes a rigorous production process within CSF’s dedicated clean room facilities. Skilled technicians hand-build the cores using precision jigs and fixtures to guarantee a perfectly straight assembly, which facilitates seamless welding and integration into custom systems. The use of gloves during assembly ensures a pristine surface, critical for proper brazing and long-term reliability.

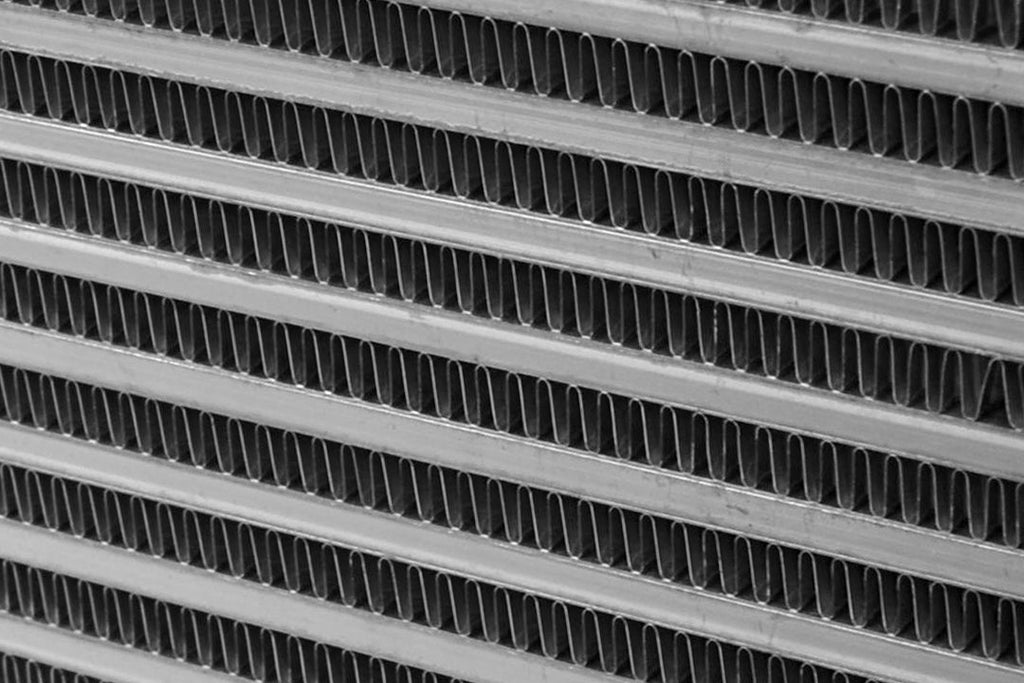

One of the defining characteristics of this intercooler core is its multi-louvered, high-precision staggered fin design. This configuration is applied to both the ambient and pressure sides of the core, enhancing heat transfer capabilities and improving overall thermal performance. The core is batch brazed in CSF’s advanced digital vacuum brazing ovens—12 ovens in total—ensuring consistent quality and structural integrity across every unit produced.
Features
- Heavy-Duty Bar & Plate Construction for Enhanced Durability
- Pressure Tested at 120psi to Guarantee Maximum Reliability in High-Boost Environments
- Hand-Built with Precision Jigs and Fixtures for a Perfectly Straight Core, Simplifying Welding Procedures
- Manufactured in a Controlled Clean Room Environment Using Gloves to Ensure Proper Brazing and Clean Surfaces
- Multi-Louvered, High-Precision Staggered Fin Design on Both Sides for Superior Heat Transfer
- Batch Brazed Using State-of-the-Art Digital Vacuum Brazing Ovens to Maintain Consistent Quality
- Undergoes Strict Quality Control and Individual Pressure Testing to Confirm Performance and Reliability
- Individually Boxed and Securely Packaged for Safe Transport via Single Piece Mail Services
- Dimensions: 24"x12"x3" (610mm x 300mm x 75mm)
- Rated for 850 HP
- Cross-Flow Design for Optimized Airflow
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 0 | Universal | - | - | - | - | - |
| 0 | - | - | - | - | - | Universal |
OEM Part Numbers
- *Universal
Warranty
Cooling Systems and Flexibles, Inc. (CSF) stands behind the quality and reliability of its High-Performance Cooling Systems. Under normal use and service, CSF warrants this intercooler core to the original purchaser of the vehicle in which it was originally installed. For comprehensive warranty details and conditions, please visit our Warranty Page.
SKU# 8067 Warranty Term: 2 years
