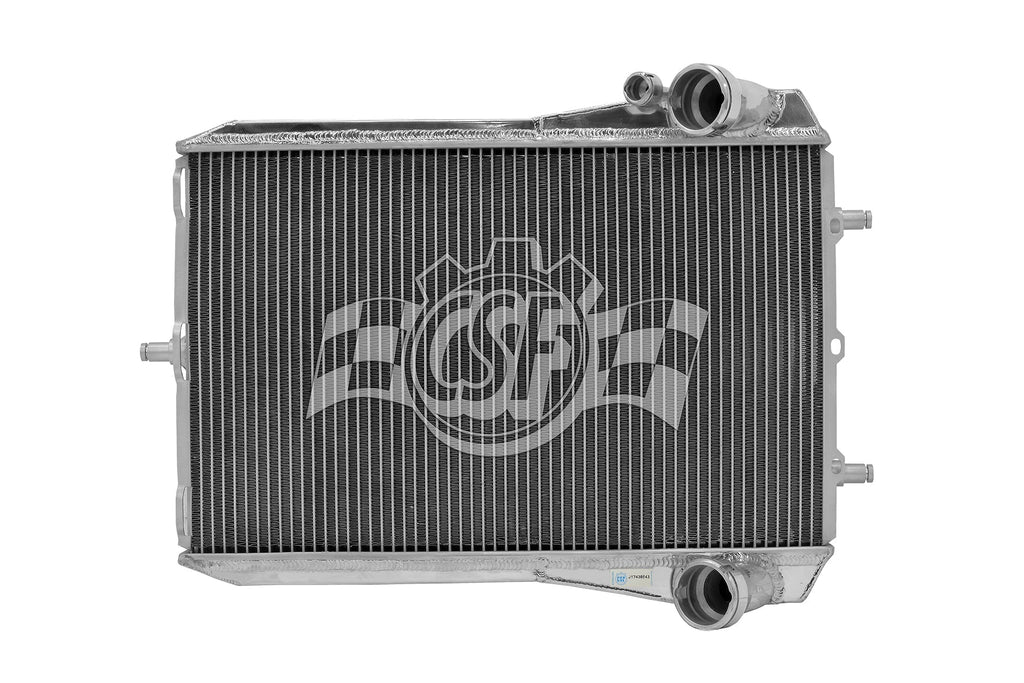

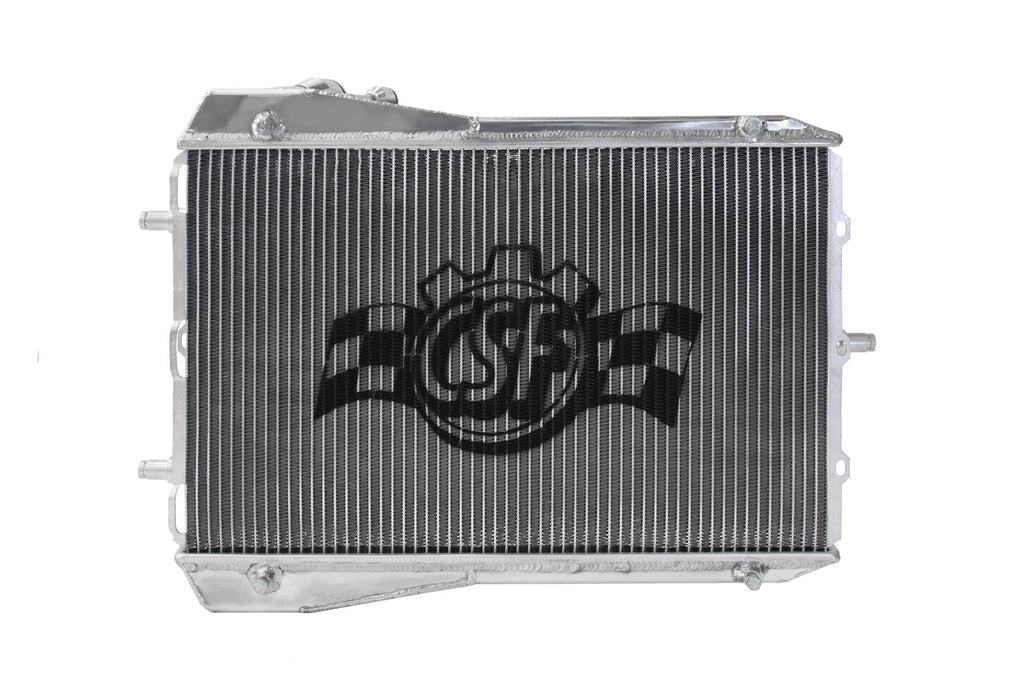

CSF Porsche 996 Turbo / GT2 / GT3 / 997 Turbo / GT2 (Right) All-Aluminum Radiator
Description
With over five decades of dedicated expertise in radiator manufacturing, CSF stands as a leader in delivering superior cooling solutions tailored for high-performance vehicles. The CSF Porsche 996 Turbo / GT2 / GT3 / 997 Turbo / GT2 (Right) All-Aluminum Radiator exemplifies this commitment to excellence, engineered to maintain optimal engine temperatures and enhance the reliability and efficiency of your Porsche 996 and 997 series. Whether for spirited street driving or competitive track use, this radiator is meticulously designed to meet the rigorous demands of both high-horsepower builds and professional motorsports applications.

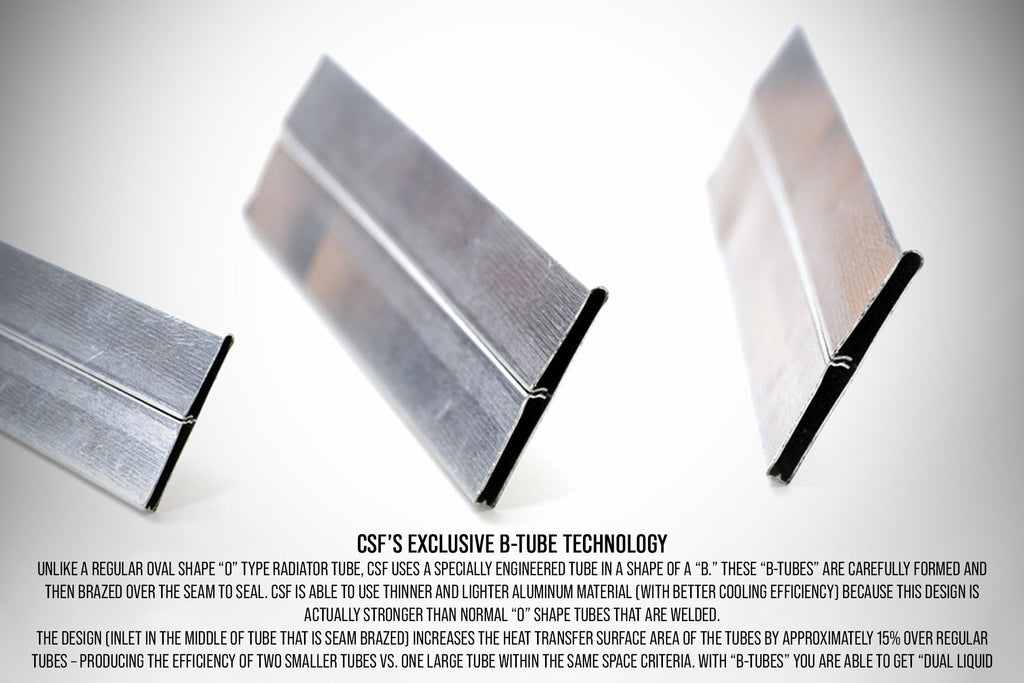

At the core of this radiator’s advanced design is the innovative 2-Row core featuring CSF’s exclusive B-Tube Technology. Unlike conventional oval-shaped “O” type tubes, CSF employs a uniquely engineered “B” shaped tube. These tubes are precisely formed and seam-brazed to ensure a robust seal, allowing the use of thinner and lighter aluminum material without compromising strength. This structural advantage translates into approximately 15% more heat transfer surface area compared to traditional tubes, effectively doubling the cooling efficiency within the same spatial constraints. The “B-tube” design facilitates dual liquid laminar flow, optimizing coolant movement and heat dissipation for superior thermal management.

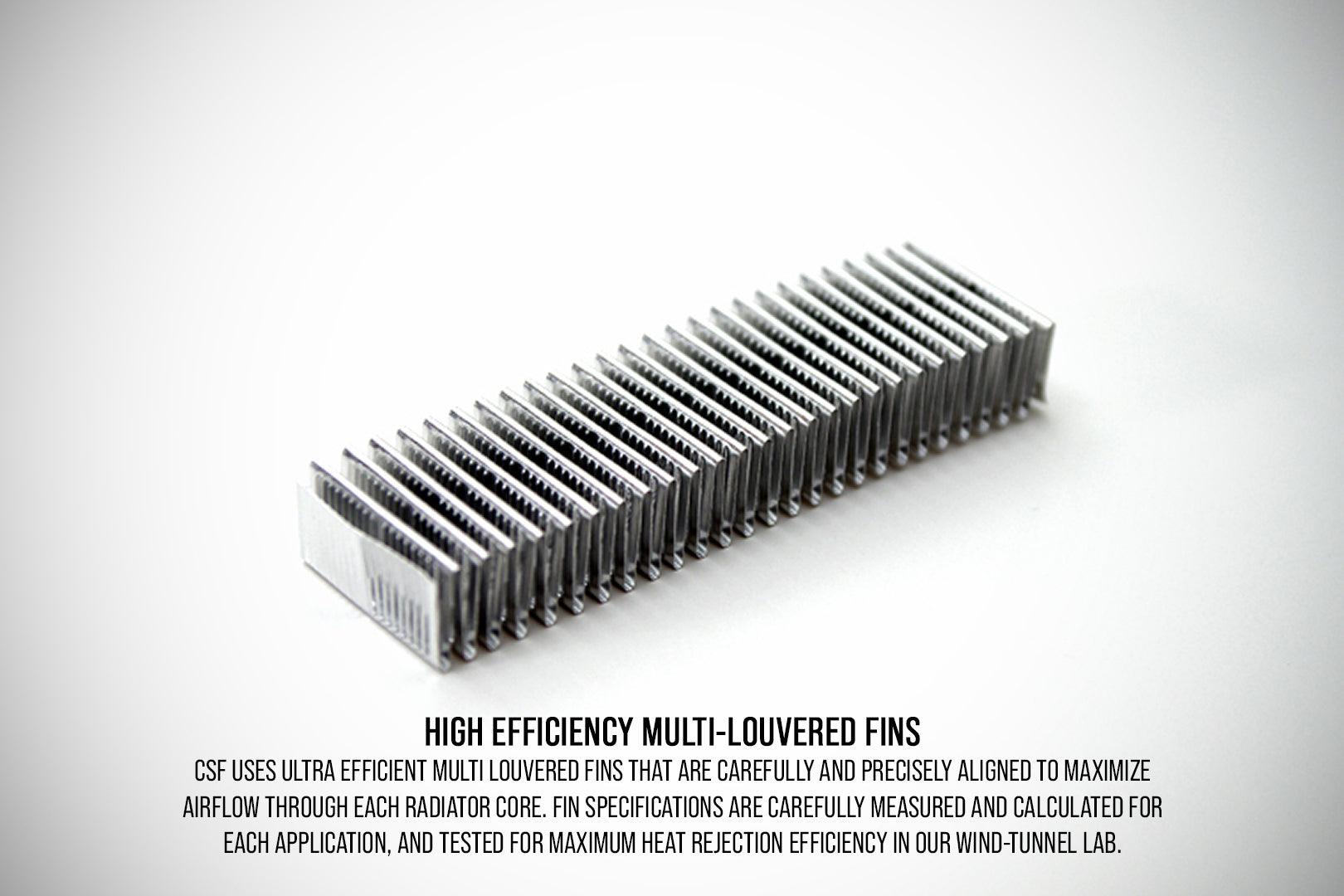

Complementing the B-Tube core, CSF integrates ultra-efficient multi-louvered fins, which are meticulously aligned to maximize airflow through the radiator. Each fin’s dimensions and spacing are carefully calculated and validated through rigorous wind-tunnel testing, ensuring peak heat rejection performance. This precise engineering guarantees that your engine remains within ideal temperature ranges, even under the most demanding conditions.
Installation is streamlined with the CSF 996/997 radiator’s true “Drop-in fit” design, requiring no modifications to your vehicle. The radiator includes CNC-machined and welded OE-style brackets, providing exceptional durability and a precise fit. The inlet and outlet connections are designed to mirror original equipment specifications, allowing seamless reuse of OEM hoses or compatible aftermarket components. This attention to detail underscores CSF’s dedication to delivering products that meet stringent quality and compatibility standards.
Features
- 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
- 6.5mm Fin Height with Multi-Louvered Design for Maximum Surface Area Contact
- Individually Leak and Pressure Tested to Ensure Reliability
- All-Aluminum Construction with 100% TIG-Welded End Tanks for Enhanced Durability
- CNC Machined Brackets and Fittings for Precise Fit and Long-Term Strength
- OEM-Style Machined Inlet/Outlet Connections for Easy Integration
- Smooth Satin Finish Providing a Professional Appearance
- Plug-and-Play “Drop-in” Fit with No Modifications Required for Installation
- Compatible with OEM AC Condenser and Fan Shroud
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2002-2004 | Porsche | 996 | 911 | Carrera 4S | 3.6L H6 | - |
| 2002-2005 | Porsche | 996 | 911 | GT2 | Turbocharged 3.6L H6 | - |
| 2008-2011 | Porsche | 997 | 911 | GT2 | Turbocharged 3.6L H6 | - |
| 2011 | Porsche | 997 | 911 | GT2 RS | Turbocharged 3.6L H6 | - |
| 2001-2005 | Porsche | 996 | 911 | Turbo | Turbocharged 3.6L H6 | - |
| 2007-2009 | Porsche | 997 | 911 | Turbo | Turbocharged 3.6L H6 | - |
| 2010-2012 | Porsche | 997 | 911 | Turbo | Turbocharged 3.8L H6 | - |
| 2005 | Porsche | 996 | 911 | Turbo S | Turbocharged 3.6L H6 | - |
| 2011-2012 | Porsche | 997 | 911 | Turbo S | Turbocharged 3.8L H6 | - |
OEM Part Numbers
- Porsche: 996 106 132 72
- Porsche: 996-106-132-72
- Porsche: 99610613272
- Porsche:
