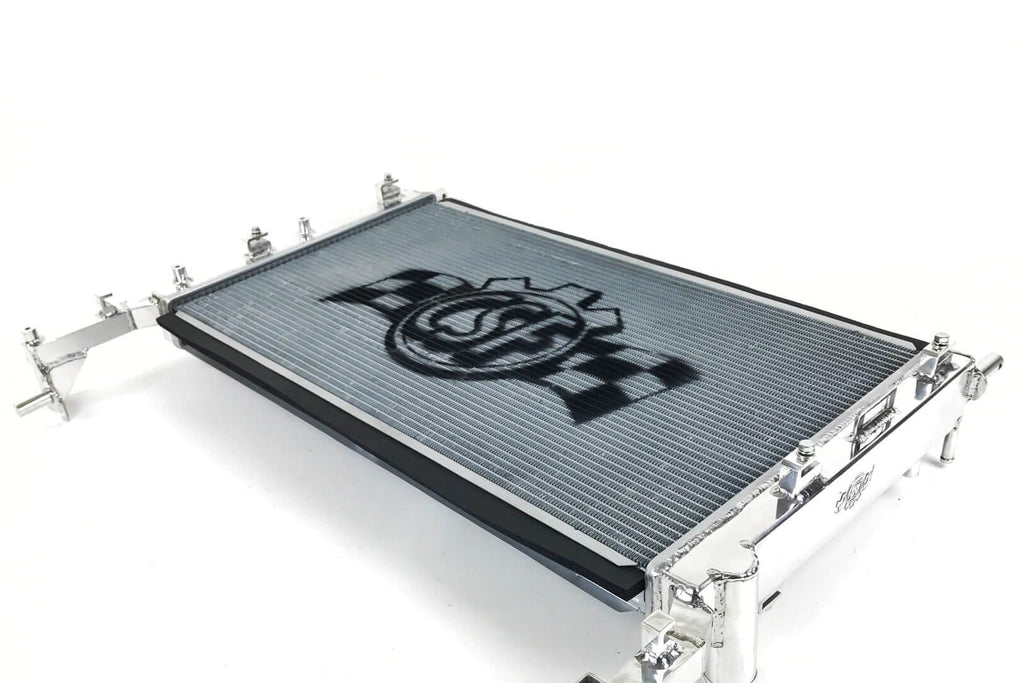

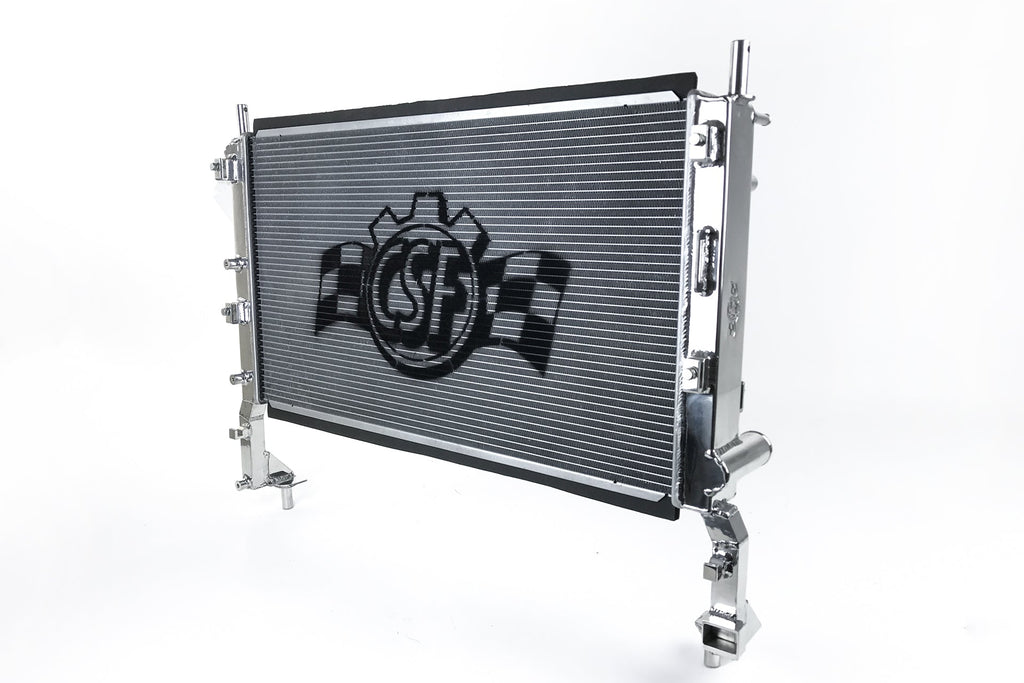

CSF S550 Ford Mustang 2.3L Ecoboost High-PerformanceAll-Aluminum Radiator
Description
With over five decades of expertise in radiator manufacturing, CSF stands as a trusted leader in delivering high-quality cooling solutions. The CSF S550 Ford Mustang 2.3L EcoBoost High-Performance All-Aluminum Radiator exemplifies this legacy, engineered to maintain optimal engine temperatures and ensure peak performance for your EcoBoost Mustang. Whether on the street or at the racetrack, this radiator is designed to meet the rigorous demands of high horsepower applications and motorsports environments, providing superior cooling efficiency essential for both daily driving and competitive racing.
This radiator features a robust 2-Row core incorporating CSF’s exclusive B-Tube Technology. Unlike conventional oval-shaped “O” tubes, CSF’s innovative “B” shaped tubes are precision-formed and seam-brazed, resulting in a structure that is not only stronger but also allows the use of thinner and lighter aluminum. This design enhances heat transfer surface area by approximately 15% compared to standard tubes, effectively doubling the cooling capacity within the same spatial constraints. The unique “dual liquid laminar flow” achieved by the B-tubes optimizes coolant movement, significantly improving thermal management.

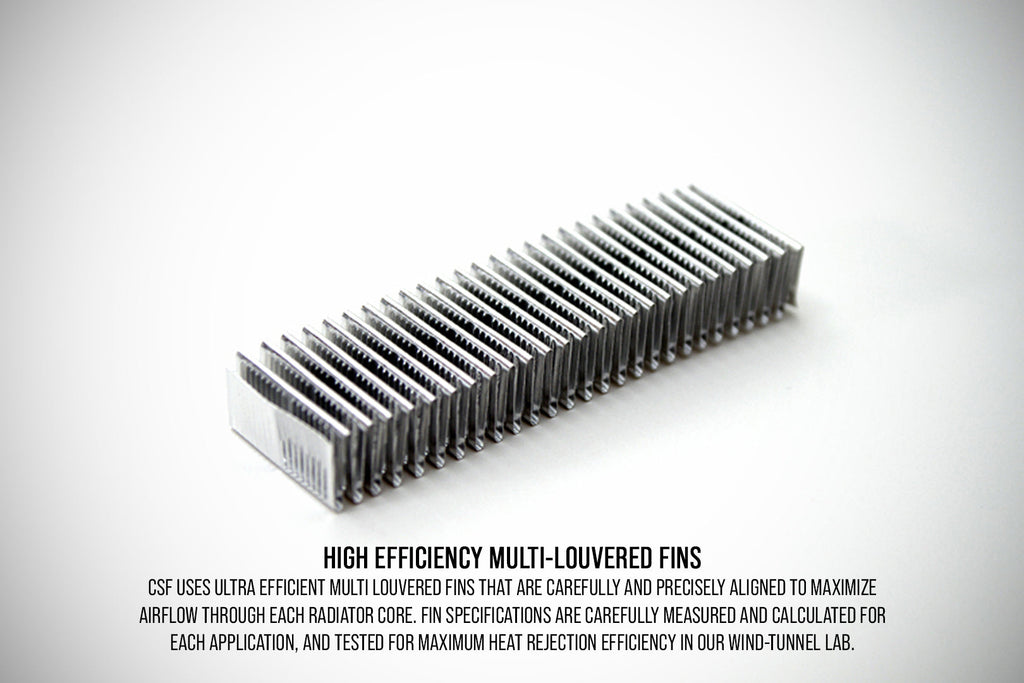

Complementing the core design, CSF employs ultra-efficient multi-louvered fins meticulously aligned to maximize airflow through the radiator. Each fin’s specifications, including a 6.5mm fin height and multi-louvered configuration, are precisely engineered and validated through rigorous wind-tunnel testing to ensure maximum heat rejection efficiency. This attention to detail guarantees superior cooling performance under demanding conditions.
Installation is straightforward with the CSF EcoBoost Mustang radiator’s true “drop-in fit” design, requiring no modifications. All OE-style brackets are CNC machined and welded to provide exceptional durability and precise fitment. The inlet and outlet connections are CNC machined to match original equipment specifications, allowing seamless integration with OEM hoses or aftermarket components. This ensures compatibility with all factory-attached parts, including quick-connect hoses, AC condenser, mounting brackets, and fan shroud, facilitating a hassle-free upgrade.
Features
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Smooth Satin Finish
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2015-2021 | Ford | S550 | Mustang | EcoBoost | Turbocharged 2.3L L4 | - |
OEM Part Numbers
- Ford: FR3Z 8005 J
- Ford: FR3Z-8005-J
- Ford: FR3Z8005J
- Ford: FR3Z 8005 H
- Ford: FR3Z-8005-H
- Ford: FR3Z8005H
Warranty
Cooling Systems and Flexibles, Inc. (CSF) guarantees the quality and reliability of its High-Performance Cooling Systems under normal use and service to the original purchaser of the vehicle in which the product was initially installed. For comprehensive warranty details, please visit our Warranty Page.
SKU# 7072 Warranty Term: 2 years
